Question 95

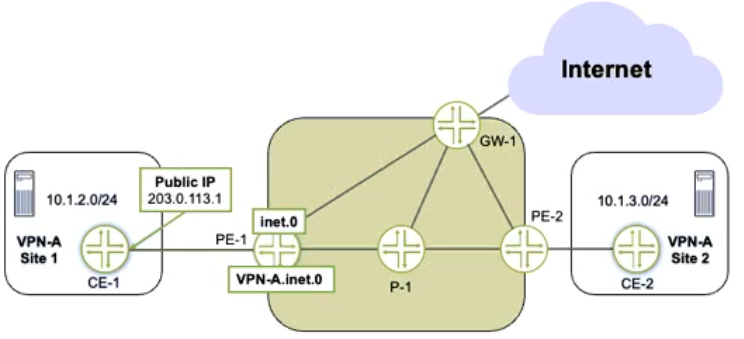

Click the Exhibit button.

Referring to the exhibit, CE-1 is providing NAT services for the hosts at Site 1 and you must provide Internet access for those hosts.
Which two statements are correct in this scenario? (Choose two.)

  • A. You must configure a static route in the main routing instance for the 203.0.113.1/32 prefix that uses the VPN-A.inet.0 table as the next hop.
  • B. You must configure a static route in the main routing instance for the 10.1.2.0/24 prefix that uses the VPN-A.inet.0 table as the next hop.
  • C. You must configure a RIB group on PE-1 to leak a default route from the inet.0 table to the VPN-A.inet.0 table.
  • D. You must configure a RIB group on PE-1 to leak the 10.1.2.0/24 prefix from the VPN-A.inet.0 table to the inet.0 table.
Answer:

bc

User Votes:
A 1 votes
50%
B
50%
C 1 votes
50%
D
50%
Discussions
0 / 1000
uax
1 month ago

a) and c)
b) is wrong, PE doesn't know the private address, since CE-1 is doing NAT for hosts in site-1
