versa networks vnx100 practice test

Question 1

In a Versa Secure SD-WAN solution, what are three functions of a hub controller? (Choose three.)

• A. It does CPE lifecycle management.
• B. It is a control plane node.
• C. It is a data plane node.
• D. It provides visibility and control.
• E. It can be a staging server.

Question 2

You have configured a Versa Secure SD-WAN solution with a Full Mesh topology.
In this scenario, which statement is true?

• A. The CPE devices send SLA probes on the active forwarding path only.
• B. The CPE devices send SLA probes on all possible transport paths between devices.
• C. The CPE devices send SLA probes to the Versa Controller, and the Versa Controller distributes active site statistics to other CPEs.
• D. The CPE devices send SLA probes to the Versa Controller, and the Versa Controller relays the probes to CPE devices.

Question 3

A customer has a single Versa Analytics cluster deployed in a data center. The Versa Director and
Versa Controller nodes are distributed between the data center and the disaster recovery sites. The
data center goes down for one day.
In this scenario, which statement is true?

• A. SD-WAN CPE live monitoring will be lost during the one-day downtime.
• B. New SD-WAN CPE cannot be deployed during the one-day downtime.
• C. Reachability between SD-WAN CPE will be lost during the one-day downtime.
• D. Logging and reporting will be lost during the one-day downtime.

Question 4

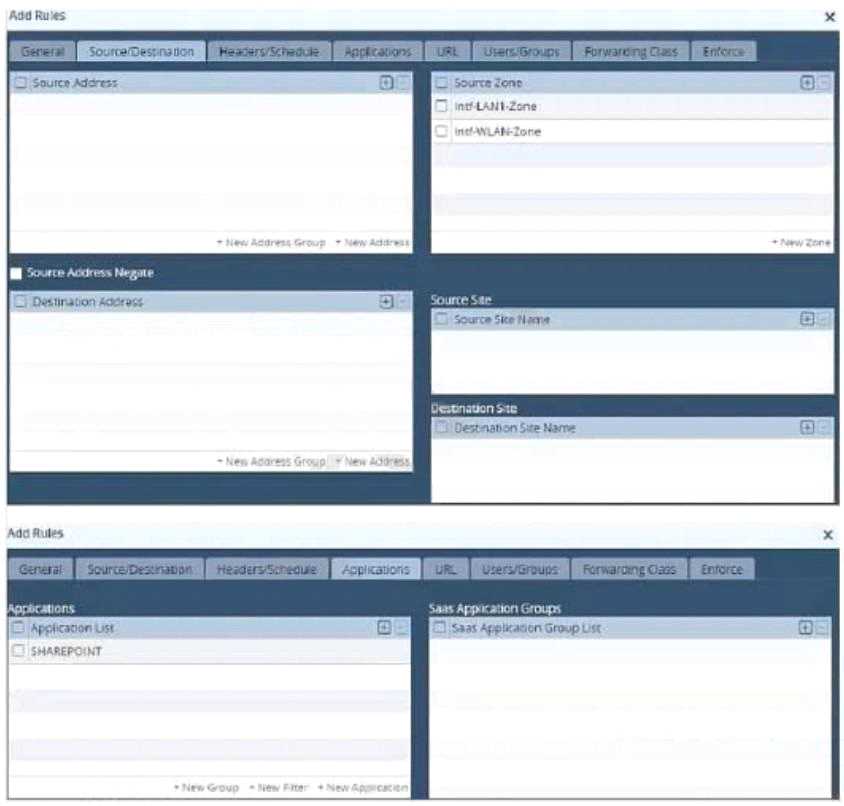

Review the exhibit.

Which set of conditions match the policy shown in the exhibit?
A.
Traffic flows that meet any one of the following three conditions:
Source Zone - Intf-LAN1 Zone
Source Zone - Intf-WLAN-Zone
Application - SharePoint
B.
Traffic flows that meet any of the following two conditions:
Source Zone - Intf-LAN1 Zone
Source Zone - Intf-WLAN-Zone
In addition, the below condition must also match
Application - SharePoint
C.
Traffic flows that meet any one of the following three conditions:
Source Zone - Intf-LAN1 Zone
Source Zone - Intf-WLAN-Zone
Application - SharePoint
D.
Traffic flows that meet all of the following two conditions:
Source Zone - Intf-LAN1 Zone
Source Zone - Intf-WLAN-Zone
In addition, the below condition must also match
Application - SharePoint

Question 5

What is the default load balancing algorithm set in an SD-WAN Forwarding Profile?

• A. High Available Bandwidth
• B. Per Packet
• C. Weighted Round Robin
• D. Per Flow

Question 6

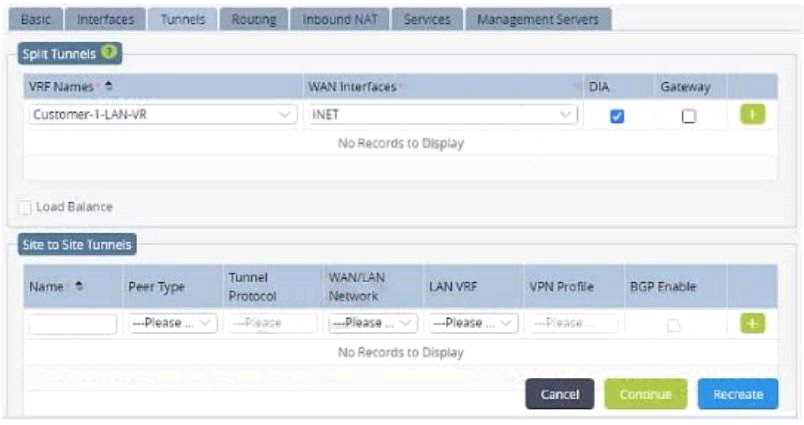

Review the exhibit.
Your manager asks you to explain what the DIA option does when configuring split tunnels as shown
in the exhibit.
In this scenario, which statement is true?

• A. It implements a BGP default route advertisement into the underlay transport of the tenant.
• B. It implements a BGP default route advertisement into the overlay network of remote tenants.
• C. It implements a BGP default route advertisement into the control network of the tenant.
• D. It implements a BGP default route advertisement into the local LAN VRF of the tenant.

Question 7

You are an administrator of a Versa Secure SD-WAN network. Due to a recent security event, you
need to apply a new URL filtering profile on all of the SD-WAN CPEs.
In this scenario, which template would you use to configure URL filtering?

• A. QoS Template
• B. Stateful Firewall Template
• C. NexGen Firewall Template
• D. Common Template

Question 8

A network operator wants to monitor a Versa CPE interface live data.
In this scenario, how would you accomplish this task?

• A. using Versa Controller
• B. using Versa Director
• C. using Versa Analytics
• D. using the Versa CPE GUI

Question 9

Which two descriptions about CoS functions in a Versa branch are true? (Choose two.)

• A. Remarking separates traffic based on Layer 3, Layer 4, and Layer 7 fields.
• B. Classification alters the CoS fields in outgoing traffic.
• C. Queuing defines the priority of traffic and weights.
• D. Scheduling controls the order of packets sent.

Question 10

Which two statements about Versa SD-WAN live monitoring of Versa CPEs are true? (Choose two.)

• A. Versa Analytics provide real-time monitoring capabilities for all services running in Versa CPE.
• B. Versa Director provides real-time monitoring capabilities for all services running in Versa CPE.
• C. Versa Analytics has built-in ping, traceroute, tcpdump, and speed test tools.
• D. Versa Director has built-in ping, traceroute, tcpdump, and speed test tools.

Question 11

Which two parts in the SD-WAN policy rules are used to steer traffic? (Choose two.)

• A. Logging
• B. Schedules
• C. Applications
• D. Anti-virus

Question 12

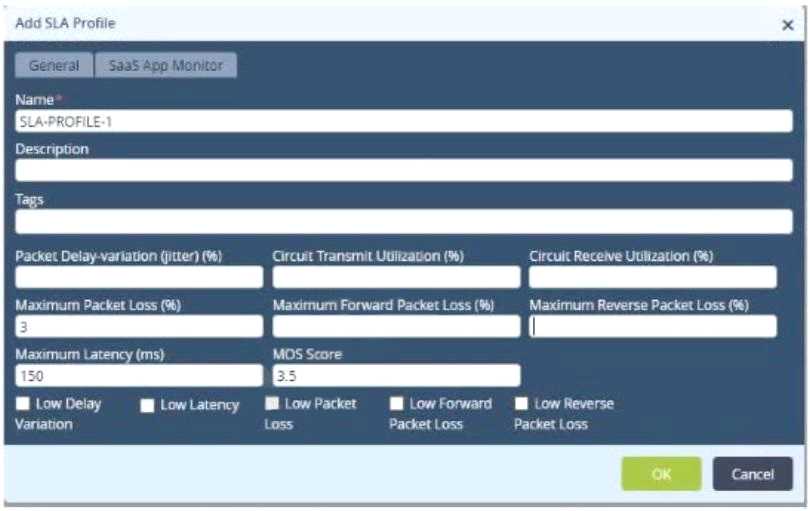

Review the exhibit.
Your manager asks you to review the SLA profile shown in the exhibit.
Referring to the exhibit, which statement is true?

• A. Creating the SLA profile adds three additional SLA probes from the branch.
• B. This SLA profile is triggered when packet loss value is exceeded.
• C. This SLA profile is triggered when a Microsoft Office software score is exceeded.
• D. This SLA profile is triggered only when both packet loss and latency values are exceeded.

Question 13

You are asked to implement a third-party application server as a virtual machine on Versa CPE.
In this scenario, which template would you use to accomplish this task?

• A. Stateful Firewall Template
• B. Common Template
• C. Application Steering Template
• D. Service Chain Tempplate

Question 14

By default, when configuring DIA through workflows, which protocol runs between the tvi interfaces
connecting an Internet VR with the LAN VRF?

• A. static routing
• B. OSPF
• C. BGP
• D. VRRP

Question 15

Which two components are required when creating a device using workflows? (Choose two.)

• A. Device Template
• B. Common Template
• C. Device Group
• D. Service Template
