the open group og0-021 practice test

ArchiMate 2 Part 1

Last exam update: Nov 18 ,2025
Page 1 out of 6. Viewing questions 1-15 out of 80

Question 1

Which of the following phases of the TOGAF ADM correspond most closely to the ArchiMate
Motivation Extension?

  • A. Preliminary, Architecture Vision, Requirements Management
  • B. Opportunities and Solutions, Migration Planning, Implementation Governance
  • C. Architecture Change Management
  • D. Business Architecture, Information Systems Architectures, Technology Architecture
Mark Question:
Answer:

A

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 2

Which of the following best describes why ArchiMate supports specialization of concepts?

  • A. It is the only way to model enterprise architecures that are useable and easy to communicate to the stakeholders
  • B. It is needed to represent the same concept on different viewpoints
  • C. It provides extra flexibility, enabling users to customize the language to their own preferences and needs, while maintaining the underlying precise definition of the concepts
  • D. It is allowed because without this mechanism it would be impossible to add attributes to ArchiMate concepts and relations
Mark Question:
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 3

Which application layer concept is defined as a passive element?

  • A. Application component
  • B. Application function r
  • C. Data object
  • D. Business object
Mark Question:
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 4

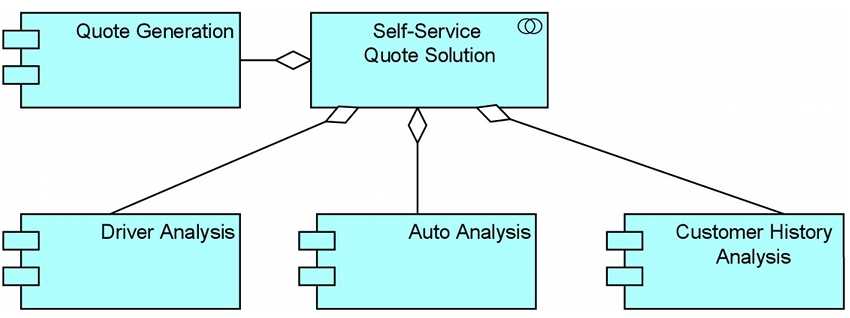

Consider the following diagram representing part of a key PRO-FIT capability: self-service online
price quotes for its auto insurance customers:

Which of the following answers best interprets this diagram?

  • A. The Self-Service Quote Solution is an application service that uses four separate application components
  • B. The Self-Service Quote Solution is an application collaboration that includes four application components that work together
  • C. The Self-Service Quote Solution is an application component that accesses four different types of data objects
  • D. The Self-Service Quote Solution is an application component that collaborates with four service modules
Mark Question:
Answer:

B

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 5

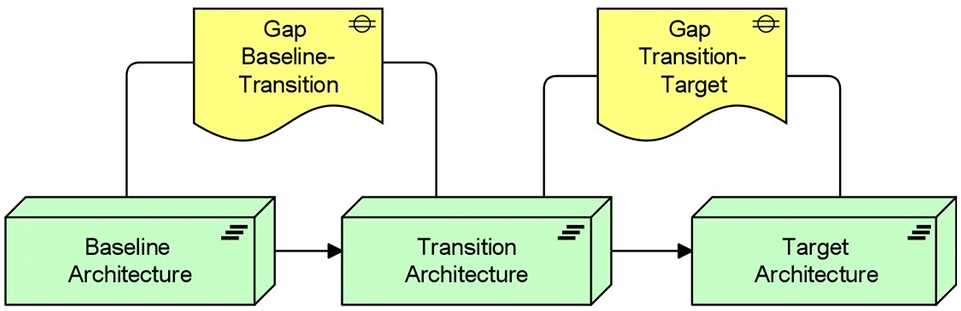

The following diagram shows an example of the use of the Migration viewpoint:

Which of the following best describes a reason for using this viewpoint?

  • A. To model the management of architecture change
  • B. To help determine the priorities of implementation projects
  • C. To relate programs and projects to the parts of the architecture that they implement
  • D. To help in planning the transition from the current architecture to a desired future architecture
Mark Question:
Answer:

D

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 6

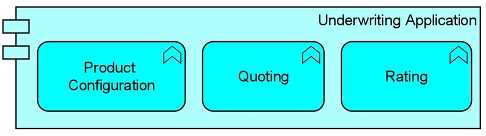

Consider the following diagram:

What does the diagram express about the Underwriting Application?

  • A. It has three distinct components
  • B. It processes three different types of data objects
  • C. It performs three different functions
  • D. It groups together three components that are not a part of the Underwriting Application
Mark Question:
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 7

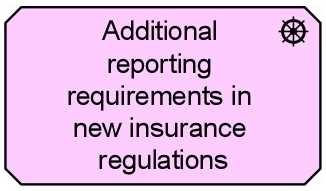

Consider the following symbol, which represents information about a transformation project at
ArchiSurance involving systems and business processes:

Which of the following statements correctly expresses the meaning of the symbol?

  • A. The ArchiSurance legal department has determined the impact of the new regulations
  • B. The project must satisfy requirements for additional reporting
  • C. The additional reporting requirements in new insurance regulations are driving change at ArchiSurance
  • D. The project's systems must be flexible enough to accommodate any future changes in reporting requirements
Mark Question:
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 8

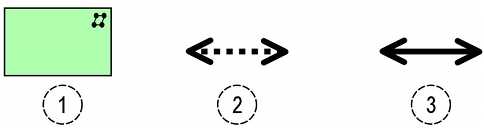

Consider the following three graphical notations:

Which of the three graphical notations represent the concept of a network?

  • A. Only notation 1 represents the network concept
  • B. Only notation 2 represents the network concept
  • C. Notations 1 and 3 represent the network concept
  • D. All three notations represent the network concept
Mark Question:
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 9

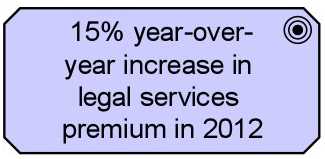

Consider the following symbol, which represents information about a transformation project at
ArchiSurance. Note that premium in this context means the total revenue ArchiSurance receives from
legal services insurance premium payments:

Which of the following statements correctly expresses the meaning of the symbol?

  • A. ArchiSurance has attributed a 15% increase in premium to the transformation project in 2012
  • B. The increased premium revenue created by completion of the transformation project will motivate significant change in the ArchiSurance Legally Yours division
  • C. ArchiSurance has set a goal to increase legal services premium by 15% in 2012, as compared to the previous year
  • D. ArchiSurance has a requirement to increase legal services premium by 15% in 2012
Mark Question:
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 10

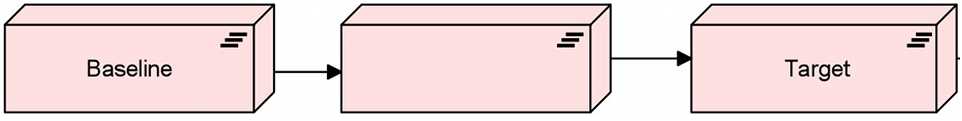

Consider the following diagram, which represents a migration from a Baseline to a Target
Architecture:

Which of the following answers best interprets the unlabeled symbol in the middle of the diagram?

  • A. It represents a relatively stable intermediate state during the migration from the Baseline to the Target Architectures
  • B. It represents a project that progresses the architecture from Baseline to Target
  • C. It represents the deliverables necessary to transform the architecture from Baseline to Target
  • D. It represents a conceptual point of transition between the two architectures, but one that is unlikely to exist in reality for more than an instant
Mark Question:
Answer:

A

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 11

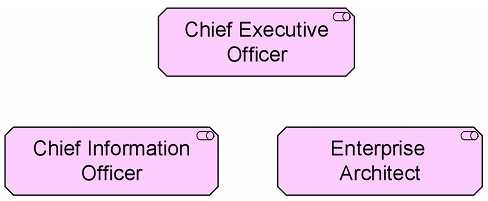

The following diagram shows a typical group of stakeholders:

Which ArchiMate viewpoint abstraction level would support these stakeholders for the purpose of
change management?

  • A. Coherence
  • B. Designing
  • C. Details
  • D. Overview
Mark Question:
Answer:

D

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 12

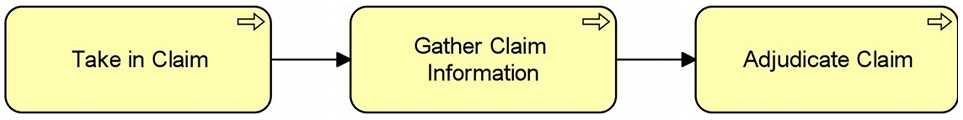

Consider the following diagram:

What does the diagram express about the relationship between the three processes?

  • A. Take in Claim passes information to Gather Claim Information, and Gather Claim Information passes information to Adjudicate Claim
  • B. Take in Claim triggers Gather Claim Information, and Gather Claim Information triggers Adjudicate Claim
  • C. Take in Claim is used by Gather Claim Information, and Gather Claim Information is used by Adjudicate Claim
  • D. The three processes may execute in parallel, although they don't have to
Mark Question:
Answer:

B

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 13

According to the ISO/IEC 40210 standard, which of the following statements is NOT correct?

  • A. A view conforms to a viewpoint
  • B. A viewpoint always addresses one or more stakeholders
  • C. A concern is always important to one or more stakeholders
  • D. A viewpoint always covers exactly one concern
Mark Question:
Answer:

D

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 14

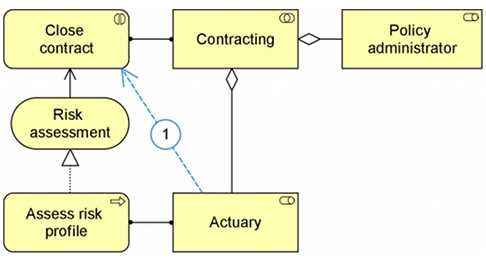

Consider the following diagram:

What is the strongest structural relationship that can be derived from business role Actuary to
business interaction Close contract (indicated by number 1 in the diagram)?

  • A. Assignment
  • B. Aggregation
  • C. Realization
  • D. Used by
Mark Question:
Answer:

D

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 15

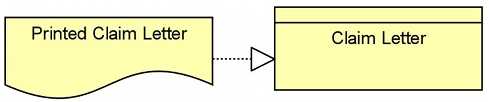

After a claim is processed, ArchiSurance notifies the claimant with a Claim Letter. Consider the
following diagram:

Which of the following answers correctly interprets the diagram?

  • A. Printed Claim Letters are scanned and stored online
  • B. Claim letters have two forms: printed and electronic
  • C. A Printed Claim Letter realizes a Claim Letter business object
  • D. Copies of Printed Claim Letters are stored in a Claim Letter filing cabinet
  • E. Printed Claim Letters are read from the Claim Letter object
Mark Question:
Answer:

C

User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000
