Question 1

Which of the following statements about the default scheduler in the Nokia 7750 SR is TRUE?
A. A queue will be serviced as expedited if all of the forwarding classes mapped to it are expedited,
regardless of its configured type.
B. A queue will be serviced as best-effort if all of the forwarding classes mapped to it are best-effort,
regardless of its configured type.
C. A queue will be serviced as expedited if at least one of the forwarding classes mapped to it is
expedited, regardless of its configured type.
D. A queue will be serviced as expedited if its type is configured as expedited, regardless of the
forwarding classes mapped to it.

Answer:

D
305/305

Discussions

Question 2

If packets egressing a SAP do not match any criteria defined in the SAP-egress policy, which
forwarding class will these packets be assigned to?

  • A. The default forwarding class defined in the SAP-egress policy.
  • B. The forwarding class inherited from network ingress classification.
  • C. Best Effort.
  • D. If there is no match, packets will be dropped.
Answer:

C

Discussions

Question 3

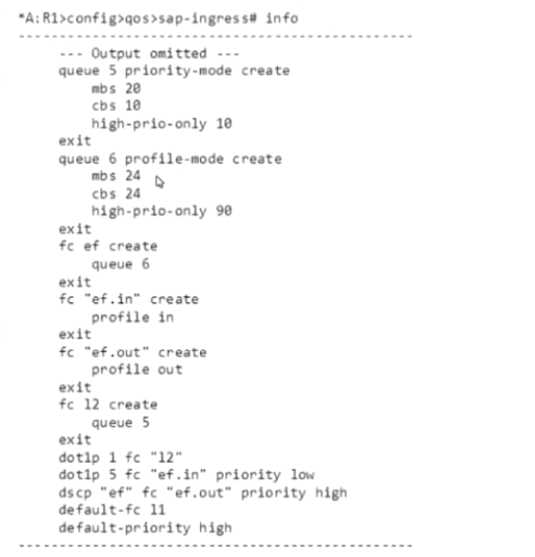

According to the SAP-ingress QoS policy shown, which packets have a higher priority to enter queue
6?

  • A. Those marked with dotlp = 5.
  • B. Those marked with dscp = "ef. 304/305 Questions & Answers PDF P-
  • C. All packets mapped to queue 6 have the same priority to use the available buffer space.
  • D. There are no packets mapped to Queue 6.
Answer:

B

Discussions

Question 4

Which of the following about self-generated traffic QoS is TRUE?

  • A. The DSCP marking stays ncl for all applications; only the internal forwarding class is manipulated across different applications.
  • B. DSCP bits can be set per application, per routing instance.
  • C. The internal forwarding class for self-generated traffic is set once and applied to the base router and all VPRN instances.
  • D. Self-generated traffic can be marked at Layer 2 no matter what encapsulation is used on the network interfaces.
Answer:

C

Discussions

Question 5

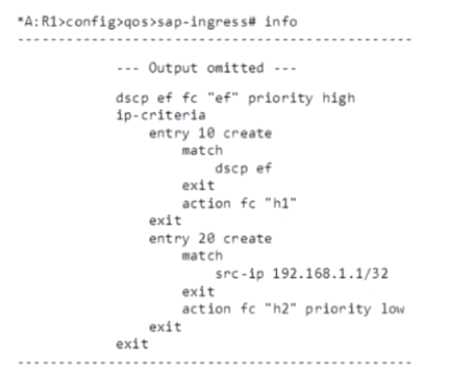

In the image shown above, the SAP-ingress policy is applied properly to a Nokia 7750 SR. A traffic
stream is received from an IP address of 192.168.1.1 with DSCP set to EF. Which forwarding class and
priority level is used for this traffic stream?

A. FC H1, high
B. FC EF, high
C. FC H2, low
D. FC EF, low

Answer:

C
303/305
Questions & Answers PDF
P-

Discussions

Question 6

Which of the following is NOT one of the four elements in the Nokia 7750 SR QoS solution'

  • A. Marking/Remarking
  • B. Classification
  • C. Encapsulation
  • D. Scheduling
Answer:

C

Discussions

Question 7

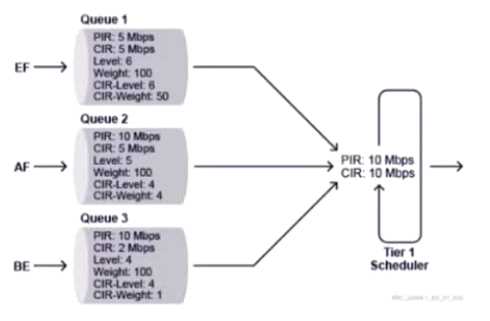

Given the scheduler-policy parameters shown, and assuming the offered rate of each queue is 10
Mbps, what are the operational PIR and CIR for queue 1?

  • A. PIR = 4 Mbps, CIR = 1 Mbps
  • B. PIR = 1 Mbps, CIR = 1 Mbps 302/305 Questions & Answers PDF P-
  • C. PIR = 10 Mbps, CIR = 1 Mbps
  • D. PIR = 5 Mbps, CIR = 5 Mbps
  • E. PIR = 1.25 Mbps, CIR = 1.25 Mbps
Answer:

D

Discussions

Question 8

301/305
Questions & Answers PDF
P-

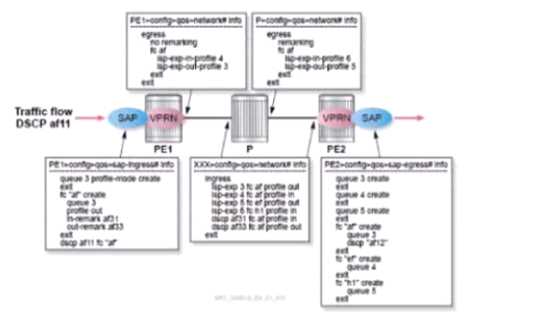

Packets arrive at the VPRN SAP on PE1 with DSCP marking of all. According to the QoS policies
applied at routers PE1, P, and PE2, what is the DSCP value of packets egressing router PE2? (All the
SDPs are MPLS-encapsulated, and all interfaces are using their default trust states).

  • A. af11
  • B. af12
  • C. af31
  • D. af33
Answer:

B

Discussions

Question 9

Which of the following fields in frames belonging to a Layer 3 service CANNOT be marked or
remarked on SAP-egress?

  • A. Dotlp
  • B. EXP
  • C. DSCP
  • D. PREC
Answer:

B

Discussions

Question 10

What is the purpose of the Nokia SR design that includes, for every ingress unicast queue, one
hardware queue per destination forwarding complex (FFPC)?

  • A. To utilize memory resources efficiently
  • B. To avoid Head of Line blocking
  • C. To achieve more granularity of QoS control
  • D. To make hierarchical scheduling/policing possible
Answer:

B

Discussions
