nokia 4a0-c01 practice test

Nokia NRS II Composite

Last exam update: Nov 18 ,2025
Page 1 out of 57. Viewing questions 1-15 out of 852

Question 1

When a router receives an IP packet, but does not find a match in the routing table for the
destination IP address, what actions are performed by the router?

  • A. The packet is flooded out all router interfaces.
  • B. The packet is dropped and an ICMP unreachable message is sent back to the source.
  • C. The packet is silently discarded.
  • D. The packet is flooded out all interfaces and an ICMP unreachable message is sent.
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 2

Which of the following statements regarding distance vectors protocols are true?
(Choose two answers).

  • A. RIPv1, RIPv2, and BGP are distance vector protocols.
  • B. OSPF and IS-IS are distance vector protocols.
  • C. Routing tables are exchanged between neighbors; however, no routing table is transmitted beyond the immediate neighbor.
  • D. Distance vector protocols use the Dijkstra SPF algorithm.
  • E. Routers that participate in distance vector routing protocols maintain full knowledge of distant routers and how they interconnect
Mark Question:
Answer:

A, C


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 3

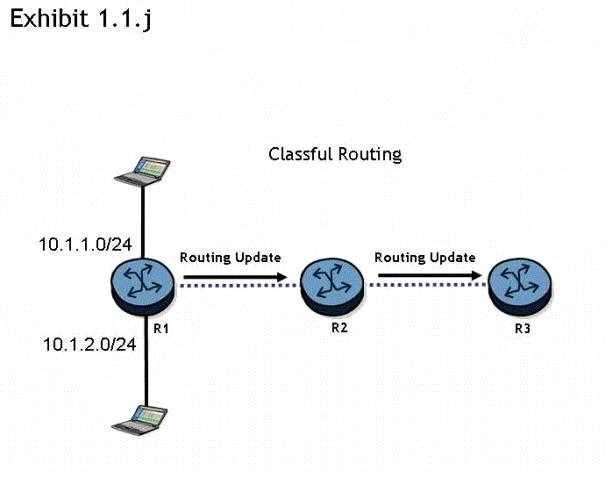

Click the exhibit button.

Routers R1 „ R2, and R3 are running a classful routing protocol between them. Assuming that router
R1 advertises all directly connected networks, how will these networks be represented in router R3's
routing table?

  • A. Router R3's routing table can only contain one of the routes, which will result in route flapping.
  • B. Router R3's routing table will have one entry for 10.1.1.0/24 and one entry for 10.1.2.0/24.
  • C. The networks will be represented with one entry of 10.0.0.0/8 in router R3's routing table.
  • D. The networks will be represented with one entry of 10.0.0.0/24 in router R3's route table.
Mark Question:
Answer:

C


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 4

In an IP datagram, which of the following fields identifies the receiving application?

  • A. The protocol field of the transport layer header.
  • B. The port field of the transport layer header.
  • C. The protocol field of the network layer header.
  • D. The port field of the network layer address.
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 5

Static routing will be used in a network between a corporate head office, with many connected
networks, and a branch office, with one connection to the head office. Which of the following best
describes the likely configuration?

  • A. The corporate head office router will have a default route and the branch site will have a more specific static route.
  • B. The corporate head office router and the branch office router will both have specific static routes.
  • C. The corporate head office router and the branch router will both have default routes.
  • D. The corporate head office router will have a more specific static route and the branch office router will have a default route.
Mark Question:
Answer:

D


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 6

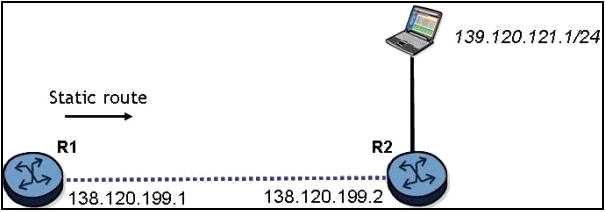

Click the exhibit button.

What is the command to configure a static route on the Alcatel-Lucent 7750 SR router R1 to reach the
network behind router R2?

  • A. configure router static-route 139.120.121.0/24 next-hop 138.120.199.2
  • B. configure router static-route 139.120.121.0/24 next-hop 138.120.199.1
  • C. configure router static-route 138.120.199.2/24 next-hop 138.120.199.1
  • D. configure router static-route 139.120.121.0/24 next-hop 139.120.121.2
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 7

There is an IP host with IP address 10.2.3.1. A static route is created, using the "configure router
static-route 10.2.3.0/24 next-hop 10.1.2.1" command. What is the correct traceroute command to
test this static route on an Alcatel-Lucent 7750 SR?

  • A. traceroute 10.2.3.1
  • B. traceroute 10.2.3.1 next-hop 10.1.2.1
  • C. traceroute next-hop 10.1.2.1
  • D. traceroute does not work on the Alcatel-Lucent 7750 SR.
  • E. traceroute 10.1.2.1
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 8

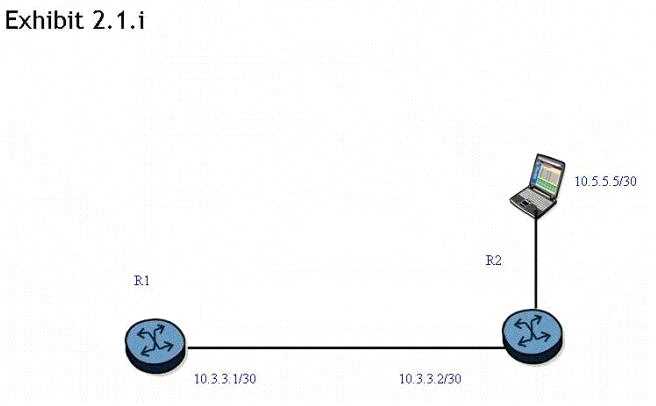

Click the exhibit button.

A static route is created on router R1 "using the "static-route 0.0.0.0/0 next-hop 10.3.3.2" command.
What command can be used to test the static route on an Alcatel-Lucent 7750 SR?

  • A. ping static 10.5.5.5
  • B. ping static 0.0.0.0/0
  • C. ping 10.5.5.5
  • D. ping 0.0.0.0
Mark Question:
Answer:

C


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 9

What is the default preference value for a static route in the Alcatel-Lucent 7750 SR?

  • A. 0
  • B. 5
  • C. 10
  • D. 15
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 10

Which of the following statements apply to link state protocol behavior? Choose three answers.

  • A. Routers broadcast the entire route table to all neighbors.
  • B. Information about directly connected links is sent to all neighbors.
  • C. An adjacency database is maintained by each router.
  • D. The sequence number for an update is incremented as it is flooded from router to router.
  • E. The topological database is the same for all routers in a single area.
Mark Question:
Answer:

B, C, E


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 11

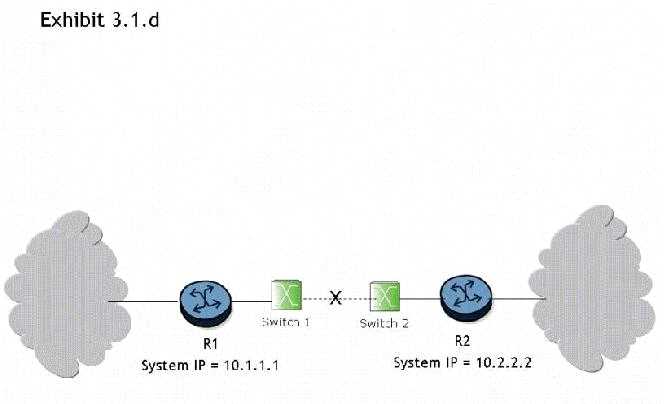

Click the exhibit button.

What triggers convergence of the routing protocol when the link between switch 1 and switch 2 goes
down?

  • A. Convergence is triggered when the adjacency between routers R1 and R2 drops as a result of Hello timeouts. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.
  • B. Convergence is triggered when the physical interfaces between routers R1 and R2 go down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.
  • C. Convergence will not be triggered because switches cannot run routing protocols between them.
  • D. Convergence is triggered when the switches notify the routers about the link state information. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged
  • E. Convergence is triggered when an LSA is sent from router R1 to router R2 to indicate that the link is down. At this point, both routers R1 and R2 re-compute their link state database and send updates to their adjacent routers. Once the process is complete for all routers, the networks have converged.
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 12

What are the default Hello and Dead timer intervals for OSPF on the Alcatel-Lucent 7750 SR?

  • A. 5 and 15 seconds
  • B. 10 and 30 seconds
  • C. 5 and 20 seconds
  • D. 10 and 40 seconds
Mark Question:
Answer:

D


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 13

What causes an adjacency to change from down to two ways?

  • A. When a link state update is received in response to a link state request.
  • B. When a router receives a Hello packet that contains its own router ID in the neighbor list from a neighbor.
  • C. When a router receives a database description packet from a neighbor.
  • D. When a link state acknowledgement is received in response to a link state update.
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 14

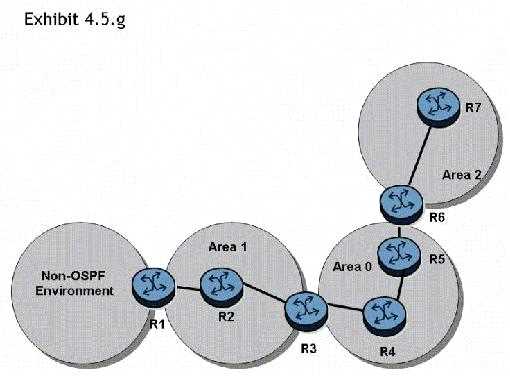

Click the exhibit button.

In the topology shown, router R1 is an ASBR configured to export external routes to OSPF. Assuming
that there are no stub networks, which of the following statements regarding type 4 LSA generation
is true?

  • A. Router R1 generates a type 4 LSA that is flooded to areas 0, 1, and 2.
  • B. Router R3 generates a type 4 LSA that is flooded to areas 0, 1, and 2.
  • C. Router R3 generates a type 4 LSA that is flooded to areas 0 and 2.
  • D. Router R3 generates a type 4 LSA that is flooded to area 0, and router R6 generates a type 4 LSA that is flooded to area 2.
Mark Question:
Answer:

D


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 15

Which of the following commands can be used to display the number of SPF computations that have
been performed on a router?

  • A. show router ospf area <area-id>
  • B. show router ospf neighbor
  • C. show router ospf interface
  • D. show router ospf status
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000
