nokia 4a0-105 practice test

Nokia Virtual Private LAN Services

Last exam update: Dec 03 ,2025
Page 1 out of 11. Viewing questions 1-15 out of 156

Question 1

Which of the following technologies allows for two explicit VLAN tags to be received from a customer
device?

  • A. RSVP-TE
  • B. SP-VLAN
  • C. QinQ
  • D. Dot1Q
Mark Question:
Answer:

C


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 2

What is the SA in the Ethernet frame used for by a layer 2 switch?

  • A. MAC learning
  • B. SA filtering
  • C. Routing table population
  • D. Frame forwarding
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 3

What are the limitations of a traditional layer 2 switch? (Choose 3}

  • A. Isolates collision domains.
  • B. Requires layer 2 loop prevention.
  • C. Slow response to topology changes.
  • D. Limited to 4094 vlans per switch.
  • E. Increased flooding.
Mark Question:
Answer:

B, C, D


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 4

Which of the following statements about the VC-ID is false?

  • A. The vc-id is signaled in the control plane.
  • B. The vc-id is part of the data plane encapsulation.
  • C. There is a vc-id to vc-label mapping.
  • D. The vc-id has point to point significance.
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 5

Assuming TLDP and RSVP are both being used in an MPLS network core which of the following
statements is true?

  • A. TLDP is used to create the inner label, RSVP is used to create the outer label.
  • B. TLDP is used to create the outer label, RSVP is used to create the inner label.
  • C. TLDP and RSVP cannot be used in the same network since they both provide the same label.
  • D. When RSVP is used, TLDP must be disabled and static vc labels should be used.
  • E. TLDP and RSVP can be used to create either labels based on how they are configured.
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 6

Fill in the blank for this next sentence. Flooded traffic received on any ____________ in the service is
replicated to other spoke SDPs and SAPs and not transmitted on any mesh SDPs.

  • A. Spoke SDP
  • B. Mesh SDP
  • C. Either (a) or (b) will make this sentence true.
  • D. Neither (a) nor (b) will make this sentence true.
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 7

Port 1/1/1 has been configured as an access port with QinQ encapsulation. Which of the following
three statements are true for ingress traffic assuming default configuration? (Choose 3)

  • A. sap 1/1/1:*.0 is a valid sap id.
  • B. sap 1/1/1:100* will accept frames with a single tag of 100.
  • C. sap 1/1/1:200* will strip the top tag of 200 and the bottom tag will be transparently passed.
  • D. sap 1/1/1:0* will accept all untagged frames.
  • E. sap 1/1/1:0* will accept any tagged frames.
Mark Question:
Answer:

B, C, D


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 8

Which of the following statements relating to VPLS is false?

  • A. A VPLS is a multipoint Layer 2 service.
  • B. A VPLS allows multiple customer sites to be connected in a single bridged domain.
  • C. A VPLS on a single node requires a SDP.
  • D. With an IP/MPLS infrastructure, service providers can provide multiple VPLS services over a common IP/MPLS infrastructure.
  • E. The VPLS switches traffic based on MAC address associated to the appropriate SAP.
Mark Question:
Answer:

C


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 9

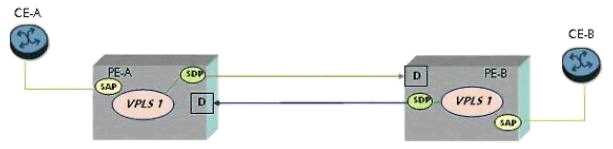

Click on the exhibit below.

Assume the port on CE-A is sending two tags, a top tag of 100 and a bottom tag of 500. PE-A is
configured with a SAP id of 1/1/1:100.*. How should PE-B be configured if CE-B is expecting a top tag
of 200 and a bottom tag of 500?

  • A. PE-B will require a SAP id of "sap 1/1/1:500*".
  • B. PE-B will require a SAP id of "sap 1/1/1:100*".
  • C. PE-B will require a SAP id of "sap 1/1/1:500.200".
  • D. PE-B will require a SAP id of "sap 1/1/1:200*".
Mark Question:
Answer:

D


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 10

Which of the following statements is false?

  • A. VPLS is a bridged LAN service.
  • B. VPLS provides L2 VPN services to CEs.
  • C. VPLS is a point-to-point service where CEs are presented with point-to-point virtual circuits.
  • D. CEs that are members of the same VPLS service instance communicate with each other as if they are connected via a bridged LAN.
Mark Question:
Answer:

C


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 11

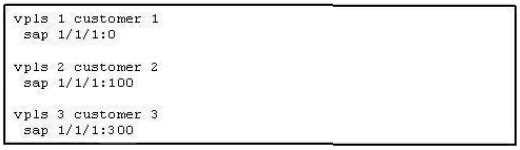

Click on the exhibit below.

The following VPLS services and SAPs have been configured. Which of the following statements is
true?

  • A. All untagged frames will be dropped.
  • B. The source MAC address of a frame with a top tag of 200 and bottom tag of 300 will be populated in VPLS 3.
  • C. All frames with more than one tag will be dropped.
  • D. The source MAC address of a frame with a single tag of 500 will be populated in VPLS 1.
  • E. The source MAC address of a frame with a top tag of 100 will be populated in VPLS 2.
Mark Question:
Answer:

E


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 12

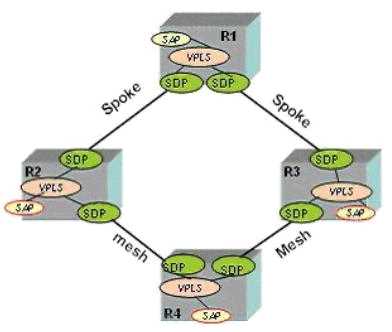

Click on the exhibit below.

If the SDP between R2 and R1 goes down, what devices will be reachable from R2 through the VPLS?

  • A. Only R4 will be reachable through the VPLS. B All devices will be reachable through the VPLS.
  • C. R4 and R3 will remain reachable.
  • D. No devices will be reachable.
Mark Question:
Answer:

A


User Votes:
A
50%
C
50%
D
50%
Discussions
vote your answer:
A
C
D
0 / 1000

Question 13

What is the default service-mtu for a VPLS service?

  • A. 1500
  • B. 1514
  • C. 1518
  • D. It depends on the access port MTU.
  • E. It depends on the network port MTU.
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 14

Click on the exhibit below.

The VPLS service MTU on R2 is 1514 bytes. What must the service MTU be on all other routers
participating in the VPLS?

  • A. The service MTU must be equal to or smaller than 1514 bytes.
  • B. The service MTU must be 1514 bytes.
  • C. The service MTU must be equal to or greater than 1514 bytes.
  • D. The service MTU can be any value.
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 15

What is the default fdb size for a VPLS service?

  • A. 100
  • B. 1
  • C. 25
  • D. 250
Mark Question:
Answer:

D


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000
To page 2
