Juniper jn0-682 practice test
Data Center, Professional Exam
Question 1
Exhibit.

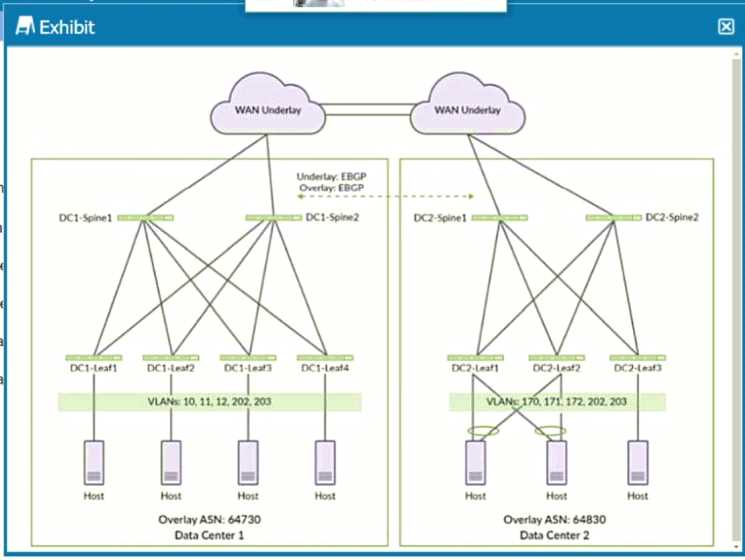

The two data centers shown in the exhibit need to be connected using EVPN.
Which two statements are correct in this situation? (Choose two.)
- A. Hosts in VLAN 10 can communicate with hosts in Data Center 2 using Layer 3.
- B. Hosts in VLAN 10 can communicate with hosts in Data Center 2 using Layer 2.
- C. Hosts in VLAN 202 can communicate using Layer 3 between data centers.
- D. Hosts in VLAN 202 can communicate using Layer 2 between data centers.
Answer:
AD
Question 2
You are asked to deploy an Ethernet bridging design in a data center with the criteria shown below.
-- Routing must occur on the spine devices.
- VTEPs must terminate on the leaf devices.
- Facilitate inter-VLAN communication.
-- Layer 2 gateways must be present on spine and leaf devices.
Which architecture should you use in this scenario?
- A. edge-routed bridging architecture
- B. centrally-routed bridging architecture
- C. bridge overlay architecture
- D. collapsed spine architecture
Answer:
B
Question 3
Exhibit.

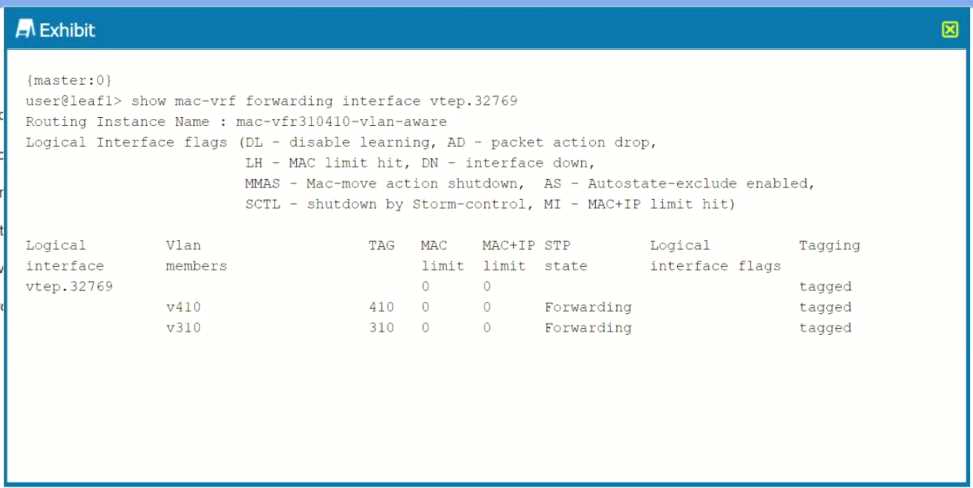

Referring to the exhibit, which statement is correct?
- A. Leaf1 has not learned any MAC addresses
- B. Leaf3 is the remote tunnel endpoint.
- C. One tunnel is servicing multiple VLANs
- D. Spanning Tree Protocol is disabled
Answer:
C
Question 4
Exhibit.

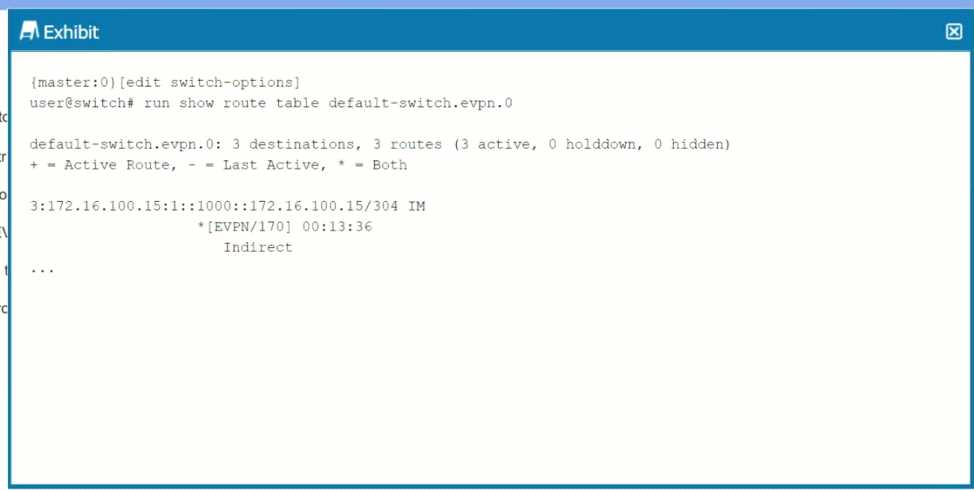

Which statement is true about the route shown in the exhibit?
- A. The route target on this route is 1000
- B. The route is an EVPN type-1 route.
- C. The route uses a type-1 route distinguisher.
- D. The VNI for this route is 304.
Answer:
D
Question 5
Exhibit.

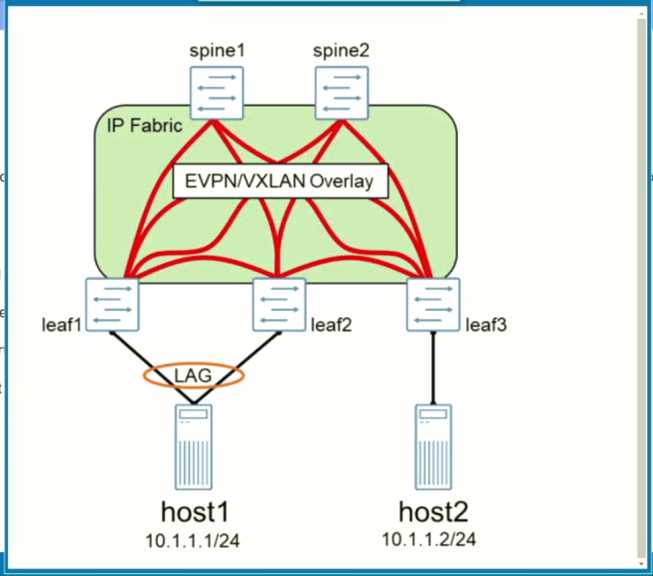

An EVPN-signaled VXLAN overlay has been deployed in the network shown in the exhibit. An EVPN
LAG has been configured to connect host1 to the network, and device leaf1 has been elected as the
designated forwarder.
- A. The Ieaf3 device can utilize both leaf1 and Ieaf2 to forward unicast packets from host2 to host1.
- B. An ICCP control link must be configured between leaf1 and Ieaf2.
- C. The Ieaf3 device will only receive an advertisement to the LAG segment from leaf1.
- D. Broadcast packets sent from host2 will not be forwarded to Ieaf2.
Answer:
C
Question 6
You are asked to manage multicast traffic in the EVPN-VXLAN environment. You must ensure that
multicast traffic is delivered only to the leaf device with interested receivers. In this scenario, which
feature is required on leaf devices to accomplish this task?
- A. PIM
- B. IGMP snooping
- C. MSDP
- D. DVMRP
Answer:
B
Question 7
You are asked to configure JTI on the QFX Series devices in your data center fabric. You must use
sensors with the least amount of latency. Which type of sensor should you use in this scenario?
- A. Python sensors
- B. JTI native sensors
- C. analog sensors
- D. JTI OpenConfig sensors
Answer:
B
Question 8
You are configuring a DCI VPN solution between sites that require an L3VPN to work with your EVPN
deployment. Your organization's policy restricts configuring RSVP and LDP on your WAN links. While
configuring the solution, you notice that no routes exist in the inet table.
In this scenario, which parameter will solve this problem?
- A. bgp family inet labeled-unicast per-group-label
- B. bgp family inet labeled-unicast aggregate-label
- C. bgp family inet labeled-unicast resolve-vpn
- D. bgp family evpn signaling
Answer:
D
Question 9
Exhibit.

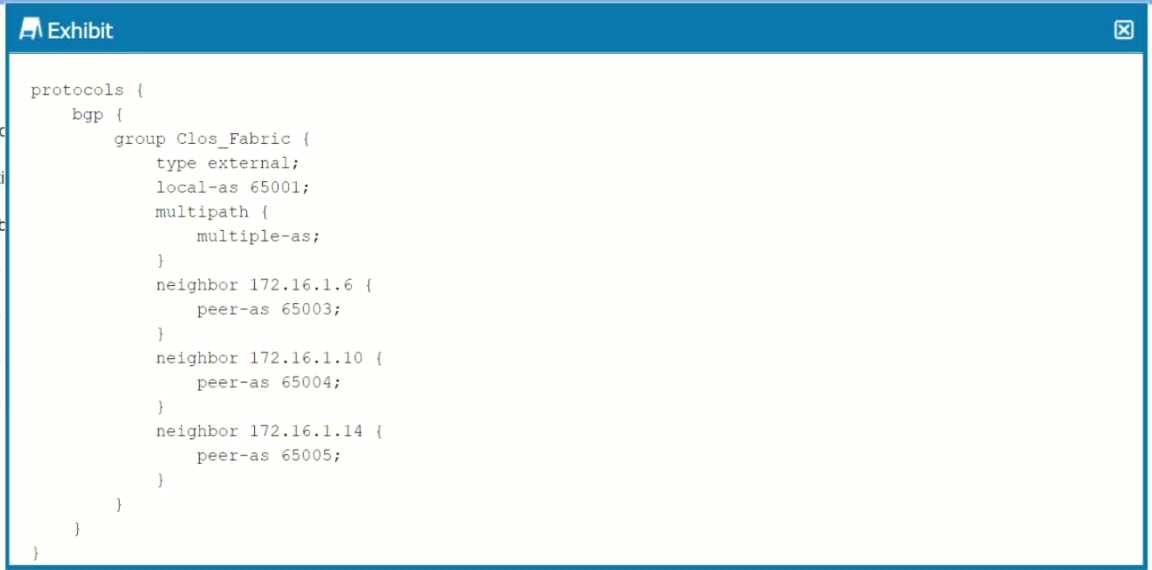

You are troubleshooting a traditional Clos Layer 3 IP fabric in your data center. You are reviewing the
BGP configuration for one of your spine devices.
Referring to the exhibit, which statement is correct?
- A. This spine device will not install multiple next hops for remote destinations in its routing table.
- B. This spine device will not install any routes for remote destinations in its routing table.
- C. This spine device has three neighboring leaf devices.
- D. This spine device has three neighboring spine devices.
Answer:
C
Question 10
Which two statements are correct about a spine and leaf-based IP fabric? (Choose two.)
- A. Traffic is diverted within the fabric when a device or link fails.
- B. There is no need for redundancy at the server level.
- C. Leaf switches broadcast frames to all other leaf devices.
- D. Clos networks demonstrate good scaling features.
Answer:
AD
