HP hpe7-a03 practice test
Aruba Certified Campus Access Architect
Question 1

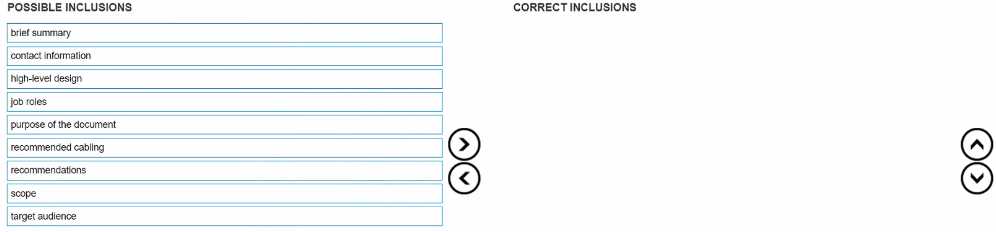

DRAG DROP
What should be Included in an Executive Summary? (Place the correct Items into the let at the right
Order is no: Important Not all cottons win be used)
Answer:
Explanation:
For an Executive Summary, typically the following items should be included:
Brief Summary
Contact Information
High-Level Design
Purpose of the Document
Recommendations
Scope
Target Audience
Question 2
A customer wants to have the ability to show network usage. Which product would allow them to
have this visibility?
- A. Central
- B. ClearPass
- C. UXI
- D. Aruba OS 8.X
Answer:
A
Explanation:
Aruba Central provides a cloud-based management platform for managing and monitoring Aruba
Instant APs, switches, and branch gateways. It offers a comprehensive dashboard that gives insights
into network usage, health, and performance metrics. Central allows network administrators to have
visibility over their entire network infrastructure from a single pane of glass, including detailed usage
statistics, which can be broken down by device, application, and time. This visibility into network
usage is crucial for optimizing network performance, planning capacity, and understanding user
behavior. Aruba Central's analytics and reporting capabilities enable customers to track and analyze
network usage, making it the appropriate product choice for customers wanting to monitor their
network usage closely.
Question 3
The clients existing network is experiencing trouble with voice occasionally dropping out on phone
calls between office locations, it Is determined that no packet loss is occurring and QOS is likely the
cause. With what phenomenon Is the client currently experiencing issues?
A)
B)
C)
- A. Option A
- B. Option B
- C. Option C
Answer:
B
Explanation:
The client is experiencing issues with Jitter, as depicted in Option B. Jitter refers to the variation in
time between packets arriving, caused by network congestion, timing drift, or route changes. In
voice communications, jitter can manifest as the occasional dropping out of voice on phone calls
because the variable delay can affect the steady stream of voice packets needed for a clear
conversation. Even when there is no packet loss, high levels of jitter can significantly impact the
quality of Voice over IP (VoIP) calls. Quality of Service (QoS) settings are essential in managing jitter,
as they can prioritize voice traffic over other types of data, ensuring that voice packets are delivered
consistently and in the correct order to minimize delays and prevent call quality degradation. Aruba
Campus Access solutions would typically include QoS features to manage and mitigate jitter on the
network.
Question 4
You ate presenting your network design solution to your customer. What Is important to include in
your presentation?
- A. protocols that will be used to make your solution work
- B. your rollback plan
- C. your experience with this kind of project
- D. tangible and intangible returns for the customer
Answer:
D
Explanation:
When presenting a network design solution to a customer, it is crucial to focus on the benefits that
the solution will bring to their business. This includes both tangible returns, such as cost savings,
increased efficiency, and improved performance, and intangible returns, such as enhanced security,
scalability, and user satisfaction. Highlighting how the solution addresses the customer's specific
needs and challenges, and how it aligns with their business objectives, helps in demonstrating the
value of the solution and facilitates decision-making. Including tangible and intangible returns in the
presentation makes it more compelling and relevant to the customer's business goals, thereby
increasing the likelihood of the proposal's acceptance.
Question 5
The customer recently found out that Aruba OS-CX switches are capable of Application Recognition.
What requirements should be fulfilled in order to do this? (Select two.)
- A. 6400 with Aruba CX Advanced License
- B. 6300F/M with Aruba CX Advanced License
- C. 8360 with Aruba CX Advanced License
- D. 6200F/M with Aruba CX Advanced License
Answer:
A
Explanation:
Aruba OS-CX switches, specifically the Aruba 6400 and 6300F/M models, are designed to support
advanced networking features, including Application Recognition, with the Aruba CX Advanced
License. The Advanced License enables enhanced capabilities such as deeper visibility into
application flows, advanced routing features, and improved network analytics. Application
Recognition allows these switches to identify and classify applications running on the network,
enabling more intelligent and dynamic network policies and improving overall network performance
and security. The requirement for an Aruba CX Advanced License on these specific models ensures
that the necessary software features and support are available to leverage Application Recognition
capabilities effectively.
Question 6
You hired a junior engineer to assist you with a large-scale network infrastructure project. The
engineer has never worked on such a complex project before and wants to better understand the
role that each stakeholder will play in the project.
What is the role of the Network Designer/Architect in this project?
- A. responsible 'or supporting, troubleshooting, and monitoring the wired/wireless infrastructure
- B. responsible for Investigating IDS/IPS Incidents and managing firewalls
- C. responsible for authoring the low-level design and creating the configuration to meet the technical requirements
- D. responsible for establishing security policy and selecting security controls for the infrastructure
Answer:
C
Explanation:
The role of the Network Designer/Architect in a large-scale network infrastructure project is to
develop a detailed technical design that meets the project's requirements. This involves authoring
the low-level design documents, which include detailed network diagrams, device configurations,
and implementation guidelines. The Network Designer/Architect must understand the technical
specifications and business goals to create a solution that is not only technically sound but also
aligned with the organization's objectives. This role is critical in ensuring that the network
infrastructure is designed to be scalable, reliable, and secure, providing a solid foundation for the
organization's operations.
Question 7
when is o Mode Conditioning Patch Cable required?
- A. A1000Base-LX Transceiver is operated with 62.5/125 cables up to 500 m.
- B. A1000Base-SX Transceiver is operated with 62.5/125 cables up to 500 m.
- C. A10GBase-LXd Transceiver Is operated with 62.5/125 cables up to 2 km.
- D. A10GBase-lR Transceiver is operated with 62 5/125 cables up to 500 m
Answer:
A
Explanation:
Mode Conditioning Patch Cables (MCPs) are used in situations where long wavelength laser
transceivers, such as the 1000Base-LX, are deployed over multimode fiber types like the 62.5/125
µm. The 1000Base-LX transceivers are designed primarily for use with single-mode fiber, but they can
operate over multimode fiber using an MCP. The MCP is necessary because the core size of
multimode fiber (62.5/125 µm) is significantly larger than that of single-mode fiber, which can lead
to modal dispersion when a single-mode laser signal enters the multimode fiber. This dispersion can
degrade the signal quality over longer distances. The MCP mitigates this issue by aligning the single-
mode laser output from the transceiver to a specific launch point in the multimode fiber, thus
minimizing dispersion and allowing for effective data transmission over distances up to 500 meters.
Question 8

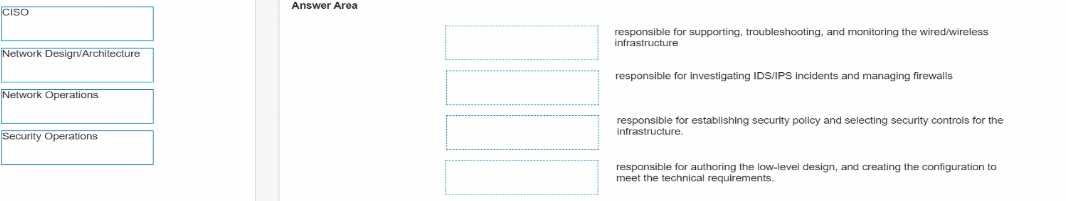

DRAG DROP
You hired a junior engineer to assist you with a large-scale network infrastructure project. The
engineer has never worked on such a complex project 'ants to better understand the role that each
role that each stakeholder will play in the project.
March the stakeholder title to the responsibilities that would most likely apply to their role.
Answer:
Explanation:
CISO: responsible for establishing security policy and selecting security controls for the infrastructure.
Network Design/Architecture: responsible for authoring the low-level design, and creating the
configuration to meet the technical requirements.
Network Operations: responsible for supporting, troubleshooting, and monitoring the wired/wireless
infrastructure.
Security Operations: responsible for investigating IDS/IPS incidents and managing firewalls.
Question 9
What is the simple difference between a main distribution framework (MOF) closet and an
intermediate distribution framework (IDF) closet?
- A. MOF is the point where traffic egresses the campus network, and IDFs distribute that connectivity throughout the building.
- B. MDFs always have larger rooms than IDFs.
- C. MDFs only connect to other MDFs. and IDFs only connect to other IDFs.
- D. MDF Is a term used in Europe whereas the Americas refer to all network closets as IDFs in their documentation.
Answer:
A
Explanation:
In network design, the Main Distribution Frame (MDF) and Intermediate Distribution Frame (IDF) are
critical components of the network infrastructure. The MDF is the primary hub of the network, often
where services from outside the campus or building enter and get distributed. It acts as a central
point for network distribution. On the other hand, IDFs are secondary hubs situated throughout the
building or campus, extending connectivity provided by the MDF to various endpoints or areas within
the building. The simple difference between them lies in their roles within the network
infrastructure: the MDF serves as the main point of network ingress and egress, while IDFs are used
to further distribute the network to specific locations or floors within the building.
Question 10
Which is true with regard to device capabilities?
- A. Wi-Fi 6E supports 6 GHz for both indoor and outdoor deployments since it was ratified in April of 2020.
- B. Aruba recommends ao-50 devices per radio for a generic office deployment.
- C. You should determine If devices support 2 A GHz or 5 GHz. No consideration Is yet required for 6 GHz as It has yet to be ratified,
- D. Aruba's best practice is to use whatever the AP model supports as a maximum.
Answer:
B
Explanation:
Aruba's recommendation for device density in a generic office environment is based on achieving
optimal performance and user experience. The suggestion to support 30-50 devices per radio takes
into account the typical bandwidth requirements, application usage, and performance expectations
in an office setting. This range is designed to ensure that the wireless network can adequately
support the number of devices without significant degradation in service quality. It balances the
need for connectivity with the practical limits of wireless technology, ensuring that each device
maintains a reliable connection and adequate throughput. This recommendation is part of Aruba's
best practices for network design and deployment, aimed at providing efficient and effective wireless
coverage in office environments.
Question 11
What is one use case for designing a 2-tier campus LAM instead of using a 3-tier?
- A. The campus has small buildings with only a few wiring closets.
- B. The network has grown beyond a few building aggregation points
- C. Access aggregation points are not scaling to meet traffic demands.
- D. Cross-campus traffic has grown beyond We capacity of a single collapsed core
Answer:
A
Explanation:
A 2-tier campus LAN architecture, consisting of the core and access layers, is typically suitable for
smaller campuses or networks with limited numbers of wiring closets. This simplified architecture
eliminates the need for a dedicated aggregation layer, which is more common in larger, more
complex network environments (the 3-tier architecture). In a small campus setting with only a few
wiring closets, a 2-tier design can provide sufficient performance and scalability, reducing complexity
and potentially lowering costs. This architecture allows for direct connectivity between the access
layer, where end devices connect to the network, and the core layer, which routes traffic to and from
the campus network. The use of a 2-tier architecture in such scenarios is driven by the network's size
and the simplicity of its requirements, making it an efficient and effective choice.
Question 12
A global furniture retail company called 'No-Stair Inc.' requests you design their new WLAN
infrastructure for a global footprint. Each location of No-Stair Inc.' has a similar layout: three small
manager offices, a warehouse, and a 'retail' are
a. The 'retail' area and the warehouse together amount to 95% of the location. The IT department of
the company Is minimally engaged In their LAN refresh so the CTO of the company has shared the
information below
Current WLAN Infrastructure Is based on the 802.1 In "WlF14Less" access-points series (both model
2013-INT (2.4 only Internal antenna) and model 2019-EXT (dual-band external antenna only)). These
AP models are standalone without any centralized management. Last year 'No-Stair InC ran a project
called secure. It' ensuring that all needed network security was Implemented to be fully compliant
with their security standards. During this project, they also upgraded the AAA infrastructure to
handle the Increased AAA requests. No additional Wi-Fi or security requirements are listed for this
WLAN refresh, which means that 'No-Stair Inc.' will continue to use bridged SSIDs. with local
breakout into different VLANs.
The CTO of No-Stair Inc.' understands the need for you to ask additional questions to deliver the
design The questions may be sent in written form and will be answered within two weeks.
Which additional question is correct in order to collect needed information for the WLAN design?
- A. Who is the campus switch vendor?
- B. Is there a current RF survey report that you can share?
- C. What type of fiber connection Is used between the core and access layer switches?
- D. IS there enough cooling In the MDF?
Answer:
B
Explanation:
An RF (Radio Frequency) survey report is crucial for WLAN design as it provides detailed information
about the current wireless environment, including signal strengths, interference sources, coverage
gaps, and the effectiveness of the existing WLAN infrastructure. For a company like 'No-Stair Inc.' that
is planning to refresh its WLAN across a global footprint, understanding the current RF conditions in
each location is essential. This information helps in designing a WLAN infrastructure that can meet
the specific needs of different areas within the locations, such as the retail area and warehouse,
ensuring optimal coverage, performance, and user experience. An RF survey report would allow the
designer to make informed decisions regarding the placement of new access points, the selection of
appropriate antennas, and the configuration of WLAN parameters to improve coverage and capacity
while minimizing interference.
Question 13
A global furniture retail company called 'No-Stair Inc.' requests you design their new WLAN
infrastructure for a global footprint. Each location of No-Stair Inc.' has a similar layout: three small
manager offices, a warehouse, and a 'retail' are
a. The 'retail' area and the warehouse together amount to 95% of the location. The IT department of
the company Is minimally engaged In their LAN refresh so the CTO of the company has shared the
information below
Current WLAN Infrastructure Is based on the 802.1 In "WlF14Less" access-points series (both model
2013-INT (2.4 only Internal antenna) and model 2019-EXT (dual-band external antenna only)). These
AP models are standalone without any centralized management. Last year 'No-Stair InC ran a project
called secure. It' ensuring that all needed network security was Implemented to be fully compliant
with their security standards. During this project, they also upgraded the AAA infrastructure to
handle the Increased AAA requests. No additional Wi-Fi or security requirements are listed for this
WLAN refresh, which means that 'No-Stair Inc.' will continue to use bridged SSIDs. with local
breakout into different VLANs.
The CTO of No-Stair Inc.' understands the need for you to ask additional questions to deliver the
design The questions may be sent in written form and will be answered within two weeks.
What additional question needs to be answered in order to collect needed information for tie WLAN
design?
- A. What type or fiber connection it used between the core and access layer switches?
- B. Who Is the campus switch vendor?
- C. Is there enough cooling in the MOF?
- D. Does the existing wired network support enough drops for an upgraded Wi-Fi Network?
Answer:
D
Explanation:
When upgrading a WLAN infrastructure, it's important to ensure that the existing wired network can
support the new wireless access points (APs) in terms of connectivity and power (if using Power over
Ethernet, PoE). For 'No-Stair Inc.,' which is planning a WLAN refresh without specific changes to the
Wi-Fi or security requirements but potentially with new AP models and configurations, verifying the
capacity of the wired network is crucial. The question about whether the existing wired network has
enough drops (ethernet connections) for the upgraded Wi-Fi network addresses this concern. It's
essential to ensure that there are sufficient ethernet ports available in the right locations to connect
the new APs, and that these ports can provide the necessary power and data rates required by
modern APs. This information will help in planning the deployment of the new APs, avoiding
potential bottlenecks and ensuring that the upgraded WLAN can deliver the desired performance
and coverage
Question 14
A large multinational financial institution has contracted you to design a new full-stack wired and
wireless network for their new 6-story regional office building. The bottom two floors of this facility
will be retail space for a large banking branch. The upper floors will be carpeted office space for
corporate users, each floor being approximately 100.000 sq ft (9290 sqm). Data centers are all off site
and will be out of scope for this project. The customer is underserved by its existing L2-based
network infrastructure and would like to take advantage of modern best practices in the new design.
The network should be fully resilient and fault-tolerant, with dynamic segmentation at the edge.
The retail space will include public guest Wi-Fi access. Retail associates will have corporate tablets for
customer service, and there will be a mix of wired and wireless devices throughout the retail floors.
The corporate users will primarily use wireless for connectivity, but several wired clients, printers,
and hard VoIP phones will be in use.
The customer is also planning on renovating the corporate office space in order to take advantage of
"smart office' technology. These improvements will drive blue-dot wayfinding. presence analytics,
and other location-based services
The client has provided floorplans. wall density, and ceiling heights tor the wireless deployment in
the carpeted office space
What else will be needed to write an accurate bill of material? (Select two)
- A. sprinkler details
- B. ceiling construction details
- C. PoE port details
- D. flooring information
Answer:
BC
Explanation:
Ceiling construction details are essential for a wireless deployment because the material and
structure of the ceiling can affect the propagation of wireless signals. Different materials can absorb
or reflect RF signals differently, impacting coverage and signal strength. Understanding ceiling
construction helps in planning the placement of access points for optimal coverage and
performance. PoE (Power over Ethernet) port details are necessary to ensure that the wired network
infrastructure can provide power to the access points and other PoE-enabled devices like VoIP
phones and cameras. This information is critical for planning the power budget and ensuring that the
network can support the power requirements of all connected devices, ensuring a stable and reliable
network infrastructure.
Question 15
A large multinational financial institution has contracted you to design a new full-stack wired and
wireless network for their new 6-story regional office building. The bottom two floors of this facility
will be retail space for a large banking branch. The upper floors will be carpeted office space for
corporate users, each floor being approximately 100.000 sq ft (9290 sqm). Data centers are all off site
and will be out of scope for this project. The customer is underserved by its existing L2-based
network infrastructure and would like to take advantage of modern best practices in the new design.
The network should be fully resilient and fault-tolerant, with dynamic segmentation at the edge.
The retail space will include public guest Wi-Fi access. Retail associates will have corporate tablets for
customer service, and there will be a mix of wired and wireless devices throughout the retail floors.
The corporate users will primarily use wireless for connectivity, but several wired clients, printers,
and hard VoIP phones will be in use.
The customer is also planning on renovating the corporate office space in order to take advantage of
"smart office' technology. These improvements will drive blue-dot wayfinding. presence analytics,
and other location-based services
The client is looking to utilize lower-cost Aruba OS-CX switches in their wiring closets. They calculate
that each closet will need a stack or qty 6 POE (AT) and qty 0 Gigabit Ethernet switches stacked with
low-cost OACs.
Which series switch should you recommend?
- A. Aruba CX 6100
- B. Aruba CX 6000
- C. ArubaCX6300F
- D. Aruba CX6200H
Answer:
C
Explanation:
The Aruba CX 6300F series is a suitable recommendation for the described scenario due to its
performance, PoE capabilities, and cost-effectiveness for wiring closet deployments. The CX 6300F
series offers the flexibility and scalability needed for modern network environments, supporting both
wired and wireless connectivity demands. It provides advanced features such as stackability, high-
density PoE options, and the capability to support dynamic segmentation, which is essential for
separating and securing different types of network traffic, such as corporate data and guest Wi-Fi
access. This series is designed to meet the needs of a full-stack wired and wireless network in a large,
multi-story office building, providing the necessary infrastructure for both current and future
network requirements.
