HP hpe6-a69 practice test

Question 1

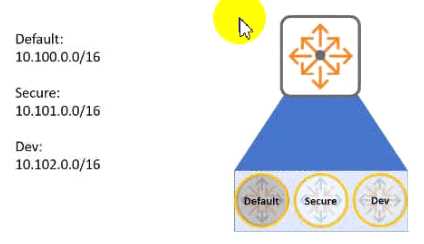

Refer to the exhibit.

Aruba CX 6300 switch has routes in three different VRFs as per the example above. The user needs to
leak routes between VRF Secure and VRF Dev. and also between VRF default and VRF Dev
The customer Is not able to establish routing between directly connected networks 10.100.50.0/24
and 10.102.26.0/24 Which statement is true regarding the routing troubleshooting?

• A. Multi-protocol BGP routing needs to be defined for route leaking
• B. Route Distinguisher needs to be set to 1 for default VRF.
• C. Route leaking is supported between non-default VRFs only
• D. Route leaking between default and non-default VRFs is supported with Aruba CX 8400.

Question 2

You have created an OSPF neighbor configuration with ArubaOS-CX 8320 VSX and a third-party switch
The OSPF peering falls. In the event togs you see the following entries.
2020-10-28:03:14 20.371489|hpe-routlng|LOG_WARN|AMM|1/5jOSPFV2|OSPFV2iOSPF 268698624
Packet received with unexpected authentication type 2020-10-28:03:14.20.371503|hpe-
routing|LOG_WARN|AMM|1/5|OSPFV2|OSPFV2|Expected authentication type = 0
Which statement is true about the above events?

• A. The ArubaOS-CX switch requires plain-text authentication with OSPF.
• B. The third-party switch should be configured with MD5 authentication
• C. The ArubaOS-CX switch does not expect authentication with OSPF.
• D. The third-party switch should be configured with key chain authentication

Question 3

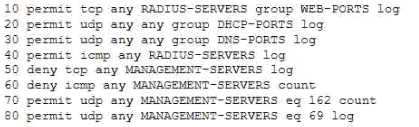

When applying me following access-Iist to an ArubaOS-CX 6300 switch:

How does this ACL behave on the selected switch? (Select two.)

• A. The mp traffic to MANAGEMENT-SERVERS group is logged to me event logs
• B. The tftp traffic to MANAGEMENT-SERVERS group is not logged to the event logs.
• C. The snmp-trap traffic to MANAGEMENT-SERVERS is logged to the event togs.
• D. The denied tcp traffic to the MANAGEMENT-SERVERS group is logged to event logs.
• E. The denied tcp traffic to the MANAGEMENT-SERVERS group is not logged to event logs

Question 4

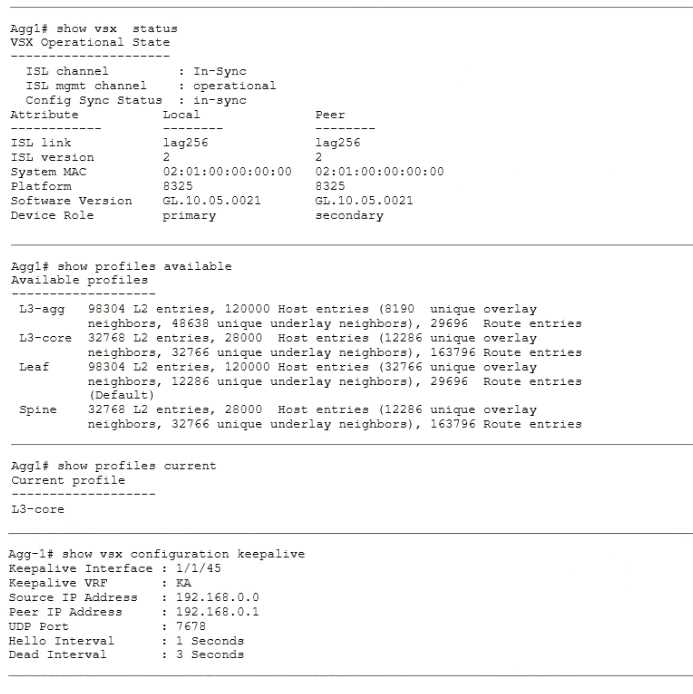

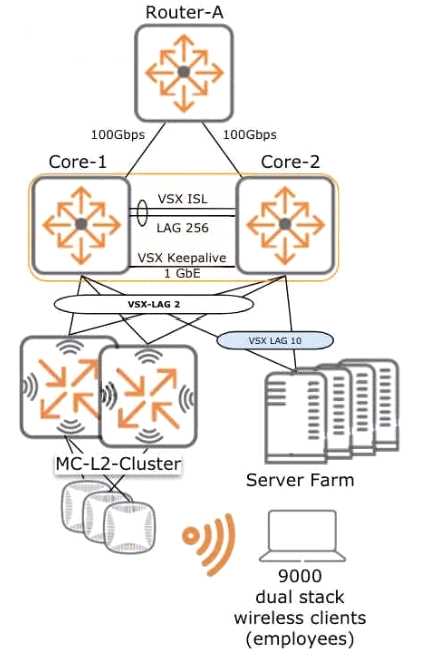

The customer is considering Implemented the following VSX configuration that will host an Aruba
mobility cluster servicing 9000 dual stack employee devices.
The client's default gateways will be hosted on the VSX stack. The customer is seeking advice about
how to ensure ArubaOS-CX VSX best practices have been applied.


What advice can you offer the customer? (Select two)

• A. The ISL Bandwidth should be upgraded
• B. Agg-1 and Agg-2's hardware forwarding table profile should be changed to "L3-agg''.
• C. The -system-mac' of Agg-1 should be changed to an unused address from the unicast private address range
• D. The vsx linkup-delay timer is unnecessarily high; it should be reduced to prevent excessive delay of packet forwarding when a VSX peer joins an existing master.
• E. The Keepalive interface should be changed to interface LAG2 so there is redundancy through the mobility cluster.
• F. The keepalive subnet is misconfigured, it has an inappropriate address on Agg-1.

Question 5

(Scenarios may contain multiple errors which may or may not Impact the solution > Refer to the
exhibit.

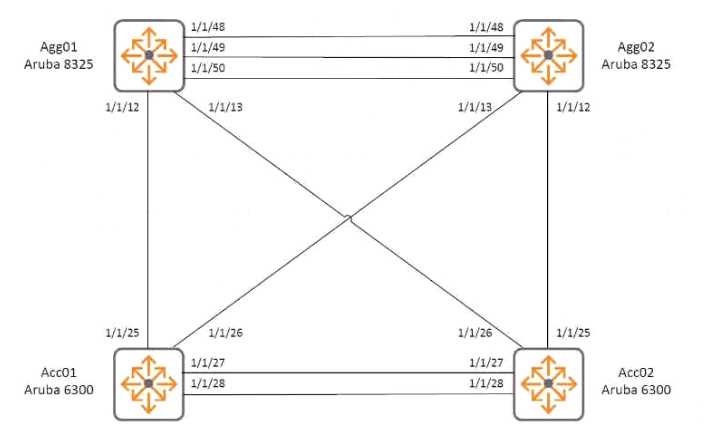

An engineer has attempted to configure two pairs of switches in the referenced configuration it is
required to implement VSX keep-alive at the aggregation layer.
The ports of the ArubaOS-CS 8325 switches used for Agg01 and Agg02 are populated as follows:

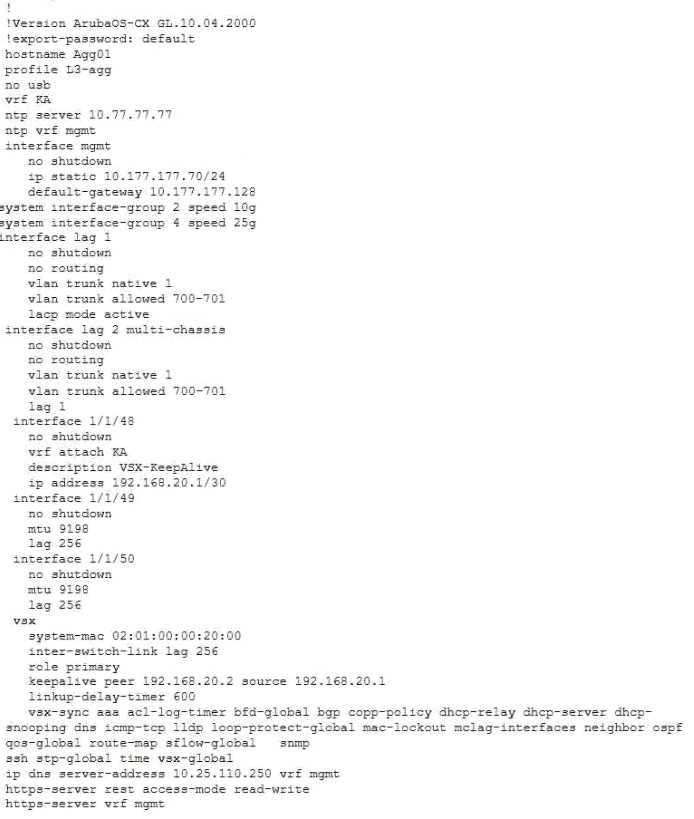

The configuration of switch AGG01 includes:

VSX keep-alive is not working. Which modification should you make lo resolve the error condition?

• A. Edit interface 1/1/48, adding the command "vpn-instance KA"
• B. Modify the Interface lag 2 command, removing "multi-chassis"
• C. Modify the Keepalive peer 192.168.20.2 source 192 168.20.1 command, adding "vrf KA"
• D. Edit the vsx-sync command, adding "keep-alive"

Question 6

(Scenarios may contain multiple errors which may or may not impact the solution )

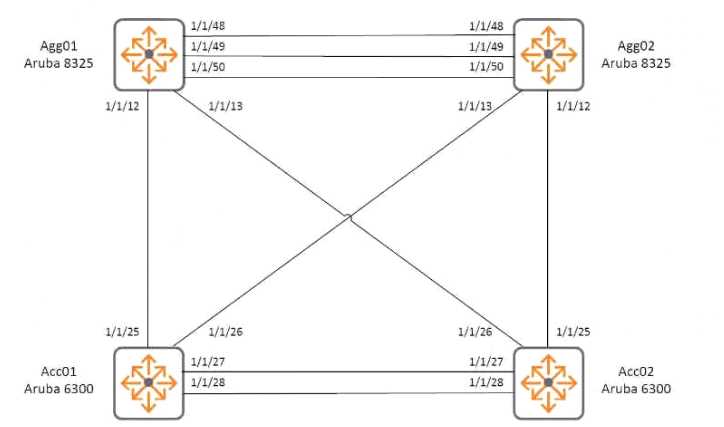

Refer to the exhibit.

An engineer has attempted to configure two pairs of switches in the referenced configuration It is
required to implement VSX at the aggregation layer
The pons of the ArubaOS-CX 8325 switches used for Agg01 and Agg02 are populated as follows:

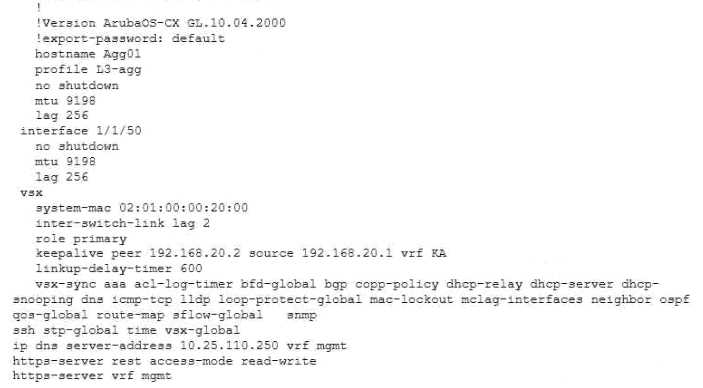

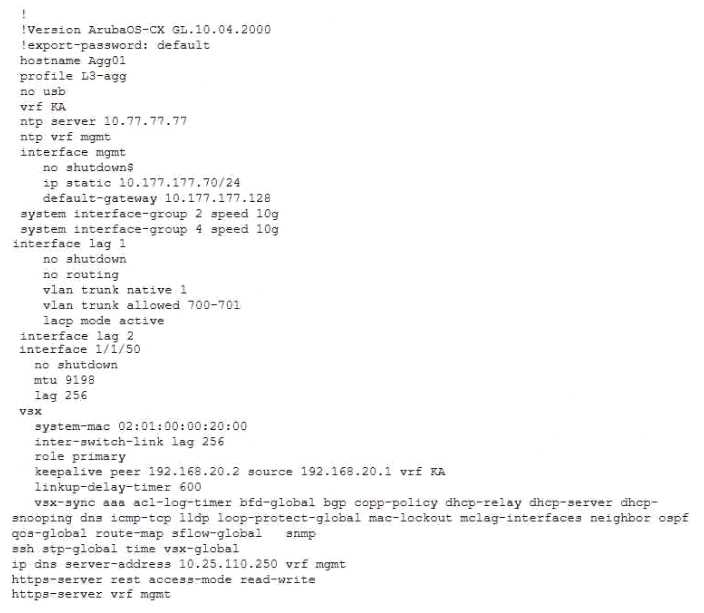

The configuration of switch AGG01 includes

The VSX cluster is not forming. Which modification should you make to resolve the error condition?

• A. Modify the system interface-group 4 speed tOg command change "25g" to "10g"
• B. Modify the keepalive peer 192.168 20.2 source 192 168.20 1 command, changing "vrf KA" to "vrf mgmt"
• C. Edit the vsx-sync command, adding "keep-alive"
• D. Modify the vsx definition, changing "inter-switch-link lag 2" to" inter-switch-link lag 256"

Question 7

(Scenarios may contain multiple errors which may or may not impact the solution)

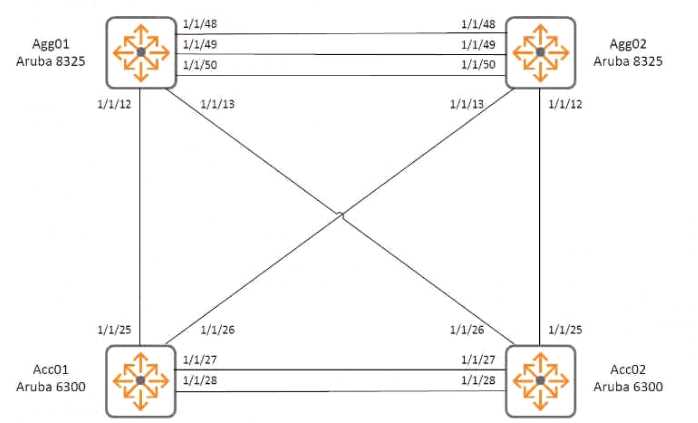

Refer to the Exhibit.

An engineer has attempted to configure two pairs of switches m the referenced configuration it Is
required to implement
Multi-Chassis Link Aggregation for each pair of switches
The ports of the Aruba 8325 switches used for Agg01 and Agg02 are populated as follows

The configuration includes:

There is an error message stating "mismatched group speed" What should you add to the
configuration to correct the error?

• A. "system Interface-group 1 speed I0g"
• B. "allow-unsupported-transceiver
• C. "speed 10-full" under interfaces 1/1/12 and 1/1/13
• D. "speed 40-full" under interfaces 1/1/49 and 1/1/50

Question 8

An administrator is utilizing the orchestration capabilities of NetEdit. What are the two plan types
that can be created'' (Select two.)
Configuration management plan

• B. Firmware plan
• C. Deployment plan
• D. Configuration plan

Question 9

An administrator has identified a denial of service attack that is stressing the management processor
on the switch. Which actions can be applied to CoPP to mitigate the issue? (Select two.)

• A. Set the processing priority
• B. Create a policy that matches the payload of GRE traffic.
• C. Regulate traffic from the OOBM Ethernet port
• D. Apply multiple active polices for the classes of traffic

Question 10

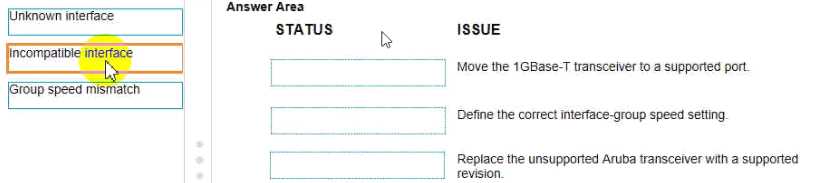

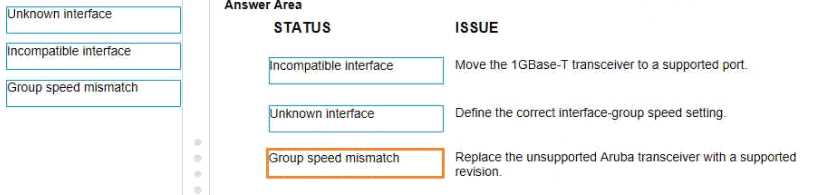

DRAG DROP
Match the repotted status to the Aruba 8325 issue (Each option may Be used once more than once,
or not at all)

Question 11

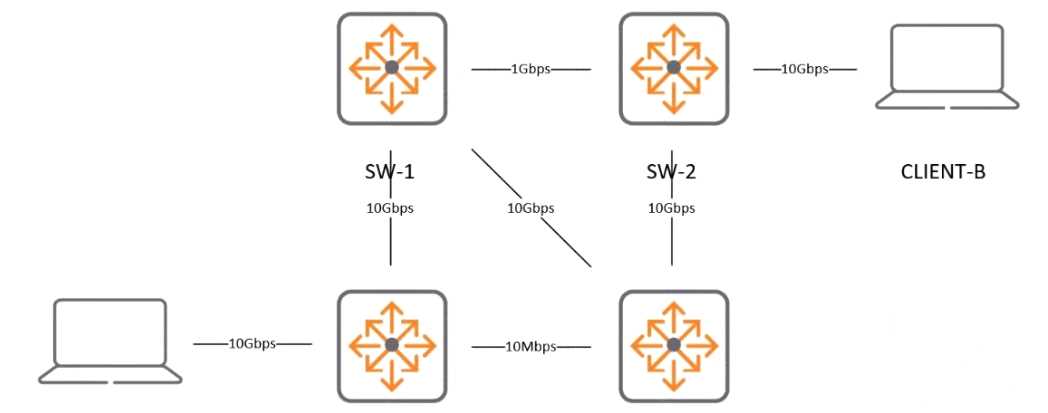

A customer would like to utilize some ArubaOS-CX 6300M switches to perform OSPF routing.

All ports are routed, and ECMP is enabled, with other default parameters for OSPF. What will be the
result of traffic sent from CLIENT-A to CUENT-B?

• A. Traffic will be SW3 -> SW-4 -> SW-2.
• B. Traffic win be SW3 -> SW-1 -> sw-2.
• C. Traffic will be SW3 -> SW-1 -> sw-4 -> SW-2
• D. Traffic will be SW3 -> SW-1 -> Sw-2 & SW3 -> SW-4 -> SW-2

Question 12

Which statement is true regarding IP-SLA?

• A. ArubaOS-CX supports Doth SLA configuration through CU and by agents through the NAE.
• B. ArubaOS-CX supports forever tests
• C. ArubaOS-CX supports on-demand as well as forever tests.
• D. The default and minimum probe interval for voip SLA is 180 seconds

Question 13

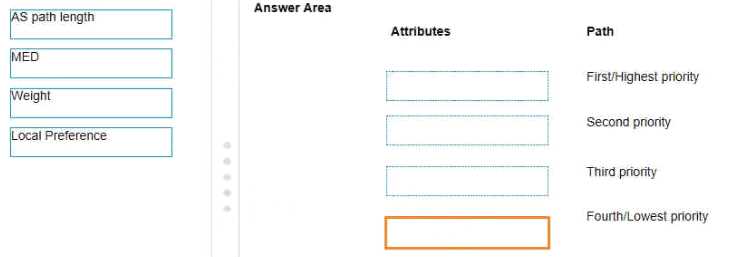

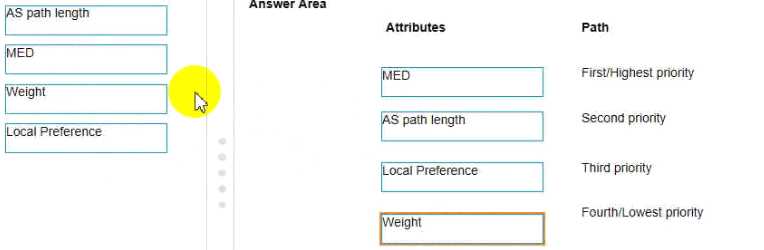

DRAG DROP
Match the BGP path selection criteria attributes (Each option may be used once, more than once, or
not at all)

Question 14

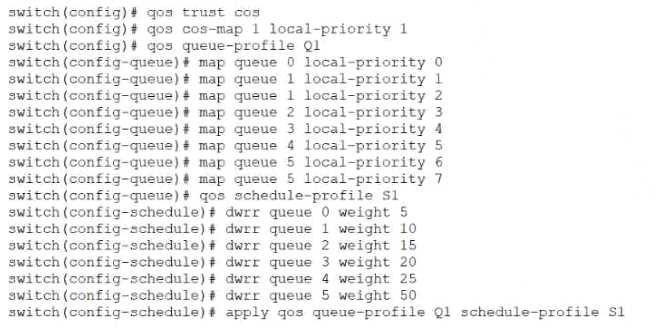

Refer to the exhibit.

Which statement is true?

• A. Q1 and S1 are applied to all interfaces mat do not have a QoS override applied
• B. To be effective, both Q1 and S1 still need to be applied to Interfaces
• C. No default queues are changed
• D. Q1 and S1 are applied to all interfaces.

Question 15

An administrator warns to create an ACL.
Permit traffic from 192.168.10, 65 through 192.168.10.94
Permit traffic from 192 168 10 104 through 192 16810.119
deny all other ip traffic
Which configuration is required to accomplish the administrator’s goals?
A)

B)

C)

D)

• A. Option A
• B. Option B
• C. Option C
• D. Option D
