dell d-pst-dy-23 practice test

Dell PowerStore Deploy 2023

Last exam update: Nov 18 ,2025
Page 1 out of 5. Viewing questions 1-15 out of 73

Question 1

How many volumes can be created at a time using the PowerStore Manager?

  • A. 64
  • B. 100
  • C. 123
  • D. 200
Mark Question:
Answer:

B


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 2

What are two properties of the VMware file system which are supported by PowerStore? (Choose
two.)

  • A. Supports VAAI primitives
  • B. Available with NFS datastores
  • C. Supports quotas
  • D. Available with VMFS datastores
Mark Question:
Answer:

A, B


Explanation:
https://infohub.delltechnologies.com/en-us/l/dell-powerstore-file-capabilities-1/file-system-types-
3/

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 3

The wan connection between the production and DR sites has a low latency of <5 milliseconds.
Which firewall port is used by PowerStore to communicate between sites?

  • A. 13333
  • B. 13335
  • C. 13334
  • D. 13336
Mark Question:
Answer:

A


Explanation:
PowerStore uses port 13337 for communication between sites in a replication setup. This port is
required to enable data transfer and management communication over the WAN connection
between the production and disaster recovery (DR) sites. The low latency condition (≥ 120
milliseconds) highlights the importance of maintaining efficient data transfer, and proper firewall
configuration ensures
PowerStore uses different ports for replication traffic based on the latency between the two sites.
Since you have a low latency connection (< 5 milliseconds), PowerStore will use port 13333.
Here's a breakdown of the ports and their corresponding latency:
13333: Low latency (< 5 milliseconds) - This is the default setting.
13334: Low Medium latency (>= 5 and < 20 milliseconds) 1
13335: Medium latency (>= 20 and < 60 milliseconds)
13336: Medium High latency (>= 60 and < 120 milliseconds)
13337: High latency (>= 120 milliseconds)
It's important to configure your firewalls to allow traffic on the correct port to ensure successful
replication between your production and DR sites.

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 4

What is the maximum number of supported replication and snapshot rules in a protection policy?

  • A. One snapshot rule and four replication rules
  • B. One snapshot rule and one replication rule
  • C. Four snapshot rules and one replication rule
  • D. Four snapshot rules and four replication rules
Mark Question:
Answer:

C


Explanation:
https://www.dell.com/support/manuals/en-ca/powerstore-5000/pwrstr-protect-data/protection-
policies?guid=guid-c8ba3ba4-6374-4285-9727-900343f64ee2&lang=en-
us#:~:text=A%20protection%20policy%20can%20include,on%20the%20rules%20in%20them
.

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 5

SIMULATION
In a PowerStore T source cluster create a 100GB volume with name “Prod_vol” with a category of
“Other”. Set its protection policy to replicate the volume with an RPO of 30 minutes to Cluster1. The
destination cluster is already configured.
When you have finished, continue to the next question.

Mark Question:
Answer:

see the steps
in explanation below.


Explanation:
1. Log in to the PowerStore Manager of the source cluster.
2. From the top menu, click Storage and select Volumes from the drop-down list
3. Click Create and enter the following information:
4. Name: Prod vol
5. Description: (optional)
6. Quantity: 1
7. Size: 100 GB
8. Application Tag: Other
9. Click Next and select the protection policy that has a replication rule to Cluster1 with an RPO of 30
minutes. If there is no such policy, click Create and follow the steps to create a new protection
policy with a replication rule
10. Click Next and review the summary of the volume creation.
11. Click Create to create the volume and start the replication session to Cluster1.

Discussions
0 / 1000

Question 6

At what point in the configuration of an External Storage import session does the data path from the
host to the PowerStore system become the active I/O path?

  • A. When the import session begins
  • B. As MPIO restarts on the host
  • C. Before launching the Import Storage wizard
  • D. During the ImportKit installation
Mark Question:
Answer:

A


Explanation:
https://www.dell.com/support/manuals/en-aw/powerstore-1000/pwrstr-import/overview-of-the-
non-disruptive-import-process?guid=guid-b91e4e36-e984-40ae-a484-75d8731926d6&lang=en-us

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 7

Which statement about File Mobility Network configuration is correct?

  • A. File mobility network is created on the same subnet and VLAN as the management network
  • B. File mobility network is created with an optional Cluster IP
  • C. File mobility network is created on the same subnet and VLAN. as the storage network
  • D. File mobility network is created under the management tab in PowerStore Manager
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 8

What are two minimum requirements for using VMware Site Recovery Manager (SRM) with
PowerStore? (Choose two.)

  • A. VMware SRM version 8.3 and newer
  • B. VMware SRM version 8.0 and newer
  • C. VMware vCenter Server and ESXi hosts version 6.5 and newer
  • D. VMware vCenter Server and ESXi hosts version 6.7 and newer
Mark Question:
Answer:

A, D


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 9

Which drive configuration is available for the PowerStore ENS24 Expansion Enclosure?

  • A. NVMe NVRAM
  • B. NVMe SSD
  • C. SAS SSD
  • D. NVMe SCM
Mark Question:
Answer:

B


Explanation:
https://www.dell.com/support/kbdoc/en-us/000205926/powerstore-how-to-install-a-nvme-
expansion-enclosure

User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 10

SIMULATION
A PowerStore user has a business need for file system snapshots of NAS Server NAS1 with the
following attributes:
Taken M-F every 2 hours

Retention of 2 days

The snapshots must be accessible through the Previous Versions menu in Windows

Using the PowerStore Simulator, make the appropriate configuration change.
When you have finished, continue to the next question.

Mark Question:
Answer:

see the
Explanation for the
solution.


Explanation:
1. Launch the PowerStore Simulator and log in with the admin credentials.
2. On the left navigation pane, click Protection and then click Protection Policies.
3. Click Create Policy and enter a name and description for the policy, such as NAS1 Snapshot Policy.
4. Under Snapshot Rules, click Add Rule and configure the following settings:
5. Name: Enter a name for the rule, such as NAS1 Snapshot Rule.
6. Schedule: Select Custom and enter the following cron expression: 0 */2 * * 1-5. This expression
means
that the snapshots will be taken every 2 hours on Monday to Friday
7. Retention: Select Until and enter 2 days. This means that the snapshots will be deleted after 2
days.
8. Access Type: Select Snapshot. This means that the snapshots will be accessible through the
Previous
Versions menu in Windows
9. Click Save to create the snapshot rule and then click Next.
10. Under Replication Rules, click Skip. This means that no replication rule will be added to the
policy.
11. Click Next and then click Finish to create the protection policy.
12. On the left navigation pane, click Storage and then click File Systems.
13. Select the file system that belongs to NAS Server NAS1 and click More Actions.
14. Click Edit and then click Protection Policy.
15. Select the protection policy that was created in the previous steps, such as NAS1 Snapshot Policy,
and
click Save.
16. Click Confirm to apply the protection policy to the file system.

Discussions
0 / 1000

Question 11

Which two operations does the PowerStore NAS VAAI plug-in support? (Choose two.)

  • A. Space Reclaim
  • B. Quota Exceeded Behavior
  • C. Reserve space
  • D. Atomic Test and Set
  • E. Extended Statistics
Mark Question:
Answer:

C, E


User Votes:
A
50%
B
50%
C
50%
D
50%
E
50%
Discussions
vote your answer:
A
B
C
D
E
0 / 1000

Question 12

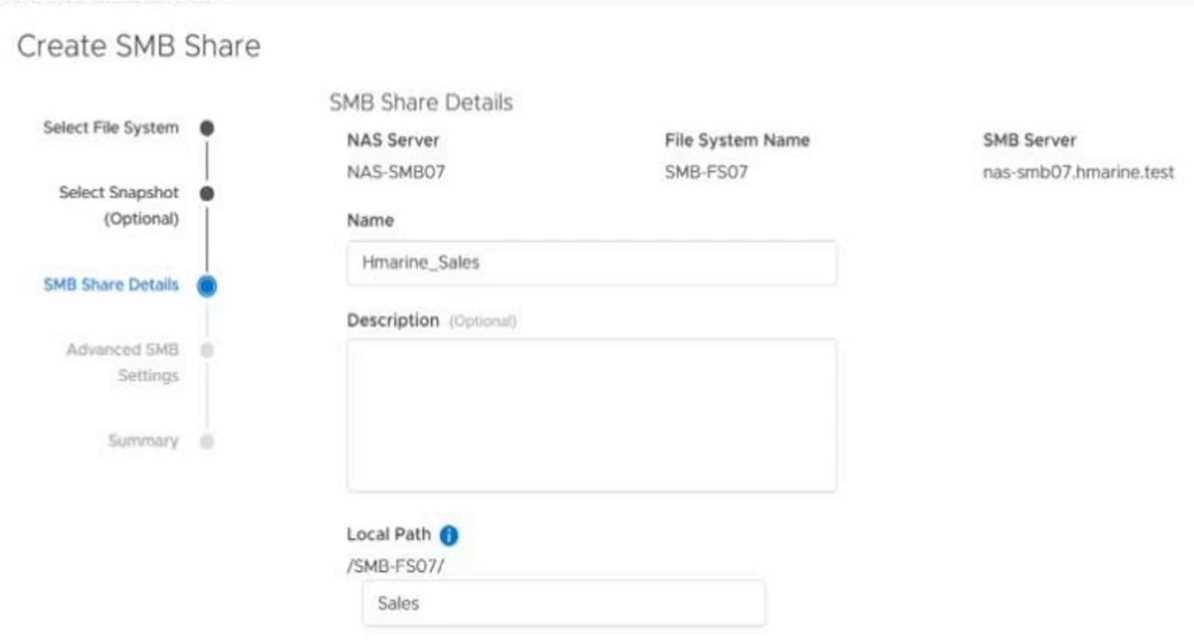

Refer to the exhibit.

Which SMB path is used to access the share from client side?

  • A. \\SMB-FS07\Sales\Hmarine_Sales
  • B. \\nas-smb07.hmarine test\SMB-FS07\ Hmarine_Sales
  • C. \\SMB-FS07\Hmarine_Sales
  • D. \\nas-smb07.hmarine.test\ Hmarine_Sales
Mark Question:
Answer:

D


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 13

While trying to add iSCSI hosts to a host group, some of the hosts are not showing up within the Add
Host Group list.
What is causing this?

  • A. Missing hosts have mapped volumes
  • B. iSCSI CHAP is disabled
  • C. Storage network is not configured
  • D. Missing hosts are marked for iSCSI and FC
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 14

An administrator is attempting to create a protection policy while creating an SMB share however
the option is not available.
What is the reason?

  • A. The protection policy has been previously associated with a file system
  • B. The protection policy must be created before associating it with the volume resource
  • C. The protection policy must be created before associating it with the file system
  • D. The protection policy is only available with file level retention enabled
Mark Question:
Answer:

C


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000

Question 15

Which requirement of a source storage system is invalid when participating in PowerStore Native
Import migration?

  • A. With iSCSI connectivity between source and PowerStore, Global storage IP address is not required
  • B. Administrator privileges are required on the source and associated hosts to import to a PowerStore cluster
  • C. For EqualLogic, the front-end connectivity must be iSCSI
  • D. For PowerMax or VMAX, the front-end connectivity must be FC
Mark Question:
Answer:

A


User Votes:
A
50%
B
50%
C
50%
D
50%
Discussions
vote your answer:
A
B
C
D
0 / 1000
To page 2
