Dell-EMC dea-5tt1 practice test

Associate - Networking Version 1.0 Exam


Question 1

Which port type does a Dell EMC Networking N-Series switch have for its console connection?

  • A. DB9
  • B. RJ-45
  • C. USB A
  • D. USB B
Answer:

A

Reference:
https://downloads.dell.com/manuals/all-products/esuprt_ser_stor_net/esuprt_networking/
esuprt_net_fxd_prt_swtchs/networking-n3100-series_user%27s-guide10_en-us.pdf page 197

Discussions

Question 2

DRAG DROP

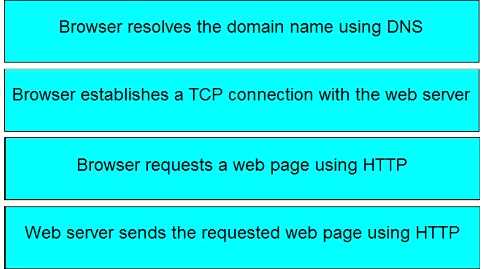

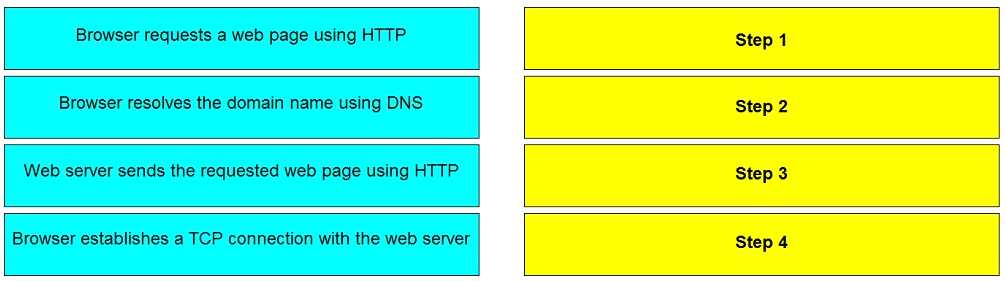

What is the correct sequence of steps when a web browser accesses a web server?

Answer:

Discussions

Question 3

A network administrator has a stack of four Dell EMC Networking S4800 Series switches. Each stack
unit is configured with a different priority. Which switch will be elected as the management device?

  • A. Switch with priority 0
  • B. Switch with priority 1
  • C. Switch with priority 14
  • D. Switch with priority 21
Answer:

B

Discussions

Question 4

On which OSI layers do standard ACL filters operate?

  • A. 2 and 3
  • B. 2 and 7
  • C. 3 and 4
  • D. 4 and 7
Answer:

C

Discussions

Question 5

What accurately describes the comparison between stacking and VLT?

  • A. VLT allows for more physical devices to appear as one virtual device than stacking does.
  • B. Stacked switches share a common control plane while VLT peers maintain their own control plane.
  • C. Stacked switches and VLT peers allow single pane of glass management by maintaining a single control plane.
  • D. Both VLT and stacking allow devices to use different versions of firmware provided that the switch family/ series is the same.
Answer:

B

Reference:
https://downloads.dell.com/manuals/common/dellemcnetworking_stacking_vs_vlt.pdf
Introduction
section

Discussions

Question 6

Which IP address is in the Class B range?

  • A. 100.100.90.87
  • B. 126.16.20.48
  • C. 191.56.44.200
  • D. 192.15.48.130
Answer:

C

Discussions

Question 7

Which route type is added to the routing table by a routing protocol?

  • A. Default route
  • B. Dynamic
  • C. Static
  • D. Directly connected
Answer:

B

Discussions

Question 8

In which Spanning Tree protocol state does a port record MAC addresses but does not forward the
data?

  • A. Forwarding
  • B. Blocking
  • C. Learning
  • D. Listening
Answer:

C

Discussions

Question 9

What accurately describes the Network Time Protocol (NTP)?

  • A. Implemented on a Dell EMC Network OS 6.
  • B. Time synchronization algorithms do not account for clock drift.
  • C. Client synchronizes among a set of distributed time servers.
  • D. Client makes sudden changes in time to keep synchronized.
Answer:

C

Discussions

Question 10

What accurately describes OSPF?

  • A. Interior gateway link-state protocol
  • B. Exterior gateway distance-vector protocol
  • C. Interior gateway distance-vector protocol
  • D. Interior gateway path-vector protocol
Answer:

A

Discussions
