cisco 640-692 practice test
CCT Routing & Switching
Question 1

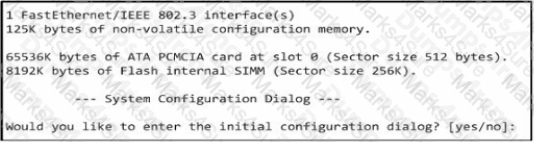

Refer to the exhibit.
What can be determined about the router from the console output?
- A. No configuration file was found in NVRAM.
- B. No configuration file was found in flash.
- C. No configuration file was found in the PCMCIA card.
- D. Configuration file is normal and will load in 15 seconds.
Answer:
A
Question 2
Which bits represent the boot field in the configuration register value?
- A. highest two bits
- B. highest four bits
- C. lowest two bits
- D. lowest four bits
Answer:
D
Question 3
Which address facilitates the routing of packets over an IP network?
- A. MAC
- B. transport
- C. network
- D. physical
Answer:
C
Question 4
Which two of the following are true? (Choose two)
- A. Telnet is preferred over SSH for security reasons.
- B. SSH is a protocol that provides a secure remote access connection to network devices.
- C. When using HyperTerminal to communicate over a TCP/IP network, the SSH protocol is used.
- D. A Telnet network management connection is dropped when a router reboots.
- E. Telnet is a protocol that provides a secure remote access connection to network devices.
Answer:
B D
Question 5
Which command displays the configuration register setting?
- A. show config-register
- B. show flash
- C. show running-config
- D. show version
Answer:
D
Question 6
Which layer of the IOS model defines how data is formatted for transmission and how access to the physical media is
controlled?
- A. Physical
- B. Data link
- C. Network
- D. Transport
Answer:
B
Question 7
Which port displays the bootup process on a Cisco device?
- A. ATM
- B. BVI
- C. Console
- D. Ethernet
Answer:
C
Question 8
Which two pieces of information about a device can be seen from the show version command?
- A. CPU load
- B. Device model
- C. Installed DRAM
- D. local CLI
- E. Locally configured IP addresses
Answer:
B C
Question 9
Which three of the following statements are true about a smart jack? (Choose three)
- A. It provides signal conversion.
- B. It operates at Layer 2 of the OSI model.
- C. It regenerates the signal to compensate for signal degradation from line transmission.
- D. It provides loopback testing.
- E. It acts as a concentration point for dial-in and dial-out connections.
Answer:
A C D
Question 10
Which of the following is a DTE device?
- A. router
- B. CSU/DSU
- C. cable modem
- D. DSL modem
Answer:
A
Question 11

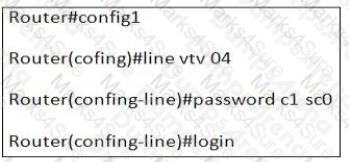

Refer to the exhibit.
Which user-mode password has just been set?
- A. Telnet
- B. Auxiliary
- C. SSH
- D. Console
Answer:
A
Question 12
Which two of the following CLI operating modes, by default, allow you to copy a Cisco IOS image to flash memory from
TFTP server? (Choose two)
- A. User EXEC
- B. Privileged EXEC
- C. ROMMON
- D. Global configuration
Answer:
B C
Question 13
What does Cisco use for Return Materials Authorization (RMA) tracking of field-replaceable parts?
- A. model number
- B. product number
- C. serial number
- D. RMA number
- E. FRU number
Answer:
C
Explanation:
Cisco uses Serial Numbers for RMA tracking of field replaceable parts (FRU) and for service contract entitlement verification
of devices.
Question 14
What are two ways to open a command prompt session on a Windows-based computer? (Choose two)
- A. Click Start > Control Panel > Command Prompt
- B. Click Start > All Programs > Accessories > Command Prompt
- C. Click Start > All Programs > Command Prompt
- D. Click Start > Run. Enter cmd and click OK
- E. Click Start > All Programs > Accessories > Communications > Command Prompt
Answer:
B D
Question 15
On which three operating systems does HyperTerminal not come pre-installed? (Choose three)
- A. Windows XP
- B. Windows Vista
- C. Mac OSX
- D. Windows 98
- E. Windows 7
- F. Windows 2000
Answer:
B C E
