cisco 600-212 practice test

Implementing Cisco Service Provider Mobility LTE Networks (SPLTE)

page 1 out of 5

Viewing questions 1-15 out of 70


Question 1

As per the 3GPP, which value of the AVP Result-Code is sent by the PCRF to indicate that the subscriber profile is not
available in its SPR?

  • A. 2001
  • B. 5002
  • C. 4011
  • D. 5030
Answer:

D

Discussions
0 / 1000

Question 2

Which EPS integrity algorithm is mandatory for the UEs?

  • A. EIA0
  • B. SNOW 3G
  • C. AES
  • D. ZUC
Answer:

A

Discussions
0 / 1000

Question 3

Which configuration option configures a TACACS+ server to be used for authentication on the Cisco ASR 5000?

  • A. configure tacacs mode server priority 1 ip-address 10.10.10.10 password cisco123 exit aaa tacacs+
  • B. configure tacacs mode server priority 1 ip-address 10.10.10.10 service authorization password cisco123 exit aaa tacacs+
  • C. configure tacacs mode server priority 5 ip-address 10.10.10.10 service authentication password cisco123 exit aaa tacacs+
  • D. configure tacacs mode server priority 1 ip-address 10.10.10.10 shared-secret cisco123 exit aaa tacacs+
Answer:

A

Discussions
0 / 1000

Question 4

Which two APN names are recommended by GSMA IR.88 / IR.92 in the Voice over LTE solution? (Choose two.)

  • A. Voice
  • B. Emergency
  • C. SOS
  • D. IMS
  • E. Video
  • F. SIP
Answer:

C D

Discussions
0 / 1000

Question 5

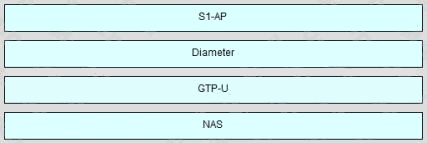

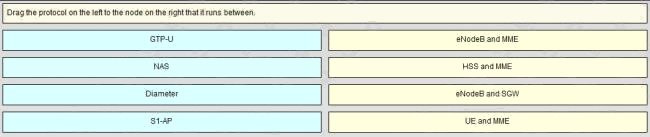

Select & Place:

Answer:

Discussions
0 / 1000

Question 6

Which description of TACACS+ administrator authentication and authorization on the Cisco ASR 5000 is true?

  • A. The Cisco ASR 5000 uses a privilege-level attribute value pair to restrict users to command sets that correspond to their assigned administrative role.
  • B. The Cisco ASR 5000 uses a privilege-level information element to restrict users to command sets that correspond to their assigned administrative role.
  • C. The Cisco ASR 5000 uses an administrator-level attribute value pair to restrict users to command sets that correspond to their assigned administrative role.
  • D. The Cisco ASR 5000 uses an administrator-level information element to restrict users to command sets that correspond to their assigned administrative role.
Answer:

A

Discussions
0 / 1000

Question 7

Which statement describes what occurs during an inter-MME tracking area update procedure?

  • A. The old MME does the integrity check of the context request by using the old GUTI in the context request message.
  • B. The SGW change indication is conveyed to the old MME in the context ack message.
  • C. The SGW change indication is conveyed to the old MME in the context request message.
  • D. The old MME does the integrity check of the context request by using the PTMSI signature in the context request message.
Answer:

B

Discussions
0 / 1000

Question 8

Which protocol runs on the 3GPP Rx interface?

  • A. GTPv2
  • B. SS7
  • C. RADIUS
  • D. Diameter
  • E. SIP
Answer:

D

Discussions
0 / 1000

Question 9

You are configuring the Cisco ASR 5000 Serving Gateway. You want to configure a reference point between the eNodeB
and the SGW for the user plane and inter-eNodeB path switching during handover.
Which option describes where the interface IP address associates?

  • A. The address associates to the SGW service.
  • B. The address associates to the GTPU service.
  • C. The address associates to the EGTP service.
  • D. The address associates to the S1U service.
Answer:

B

Discussions
0 / 1000

Question 10

Which two IEs are ignored by the LTE domain when the EPS QoS parameter is mapped to the R99 QoS parameter?
(Choose two.)

  • A. pre-emption capability
  • B. ARP priority
  • C. MBR of PDP context associated with the background traffic class
  • D. MBR of PDP context associated with the interactive traffic class
  • E. pre-emption vulnerability
Answer:

A E

Discussions
0 / 1000

Question 11

Which two methods are used for Lawful Intercept provisioning? (Choose two.)

  • A. Stake out provisioning
  • B. Camp-on provisioning provisioning
  • C. Active call provisioning
  • D. Surveillance provisioning
  • E. Circuit tap provisioning
Answer:

B C

Discussions
0 / 1000

Question 12

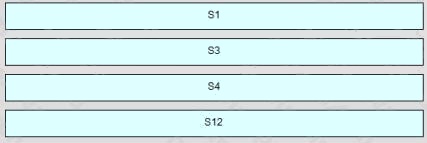

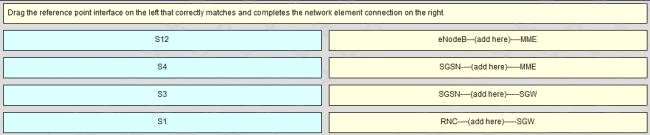

Select & Place:

Answer:

Discussions
0 / 1000

Question 13

Which MME feature can be configured in the call control policy on the Cisco ASR 5000 system?

  • A. super-charger feature configuration
  • B. sgtp-service association
  • C. direct-tunnel feature configuration
  • D. RAT frequency selection priority override
Answer:

D

Discussions
0 / 1000

Question 14

Which two options are two functions of a proxy CSCF? (Choose two.)

  • A. a SIP registrar that is responsible for session management
  • B. an entity in IMS that connects with the ENUM server for the number portability function
  • C. a SIP proxy node that acts as a signaling entry point into IMS
  • D. an entity in IMS that works on both signaling and bearer domain
  • E. an entity in IMS that connects with PCRF via the Rx interface
  • F. an entity in IMS that interacts with application servers
Answer:

C E

Discussions
0 / 1000

Question 15

Which protocol does the IMS client use to register with IMS core?

  • A. Diameter Protocol
  • B. Session Initiation Protocol
  • C. GPRS Tunneling Protocol
  • D. Real-time Transport Control Protocol
Answer:

B

Discussions
0 / 1000
