cisco 300-625 practice test

Implementing Cisco Storage Area Networking (DCSAN)


Question 1 Topic 4

Topic 4
A storage network engineer is upgrading a Cisco MDS Director with dual supervisor modules. The install command is
executed on the standby supervisor module but fails. Which action would have prevented this failure?

  • A. All FCoE interfaces configured on the MDS must be shut down before starting the upgrade.
  • B. The upgrade must be done on the active supervisor module only.
  • C. Cisco Fabric Services must be disabled before starting the upgrade.
  • D. Fabric Controller Service must be stopped before starting the upgrade.
Answer:

B

Discussions

Question 2 Topic 4

Topic 4
Two stable fabrics have overlapping domains. After a switch from the first domain is joined to a switch from the second
domain, both switches become isolated. What caused the problem?

  • A. The autoreconfigure option is disabled on both switches.
  • B. The autoreconfigure option is enabled on both switches.
  • C. The rcf-reject option is enabled on the interfaces.
  • D. The rcf-reject option is disabled on the interfaces.
Answer:

A

Discussions

Question 3 Topic 4

Topic 4
A storage administrator manually configures a storage switch to use a new static domain ID. After issuing an fcdomain
restart vsan 1 command, the administrator sees that the switch is still using the existing domain ID. What is the reason why
the configuration is not working?

  • A. Static domain IDs apply only after a switch is rebooted.
  • B. The disruptive keyword was not used on the command.
  • C. Build fabric notifications were not sent to the other switches.
  • D. Domain manager fast restart is not enabled on the switch.
Answer:

A

Discussions

Question 4 Topic 4

Topic 4
A storage administrator is connecting two previously configured switches to make a single fabric. When the E Ports are
connected, the administrator sees a ZONE MERGE FAILURE message referring to the zoneset for VSAN 10 on each
switch. Which command should the administrator use to allow these switches to work together?

  • A. zoneset import interface fc1/1 vsan 10
  • B. zoneset distribute full vsan 10
  • C. zoneset overwrite-control vsan 10
  • D. zoneset copy active-zoneset full-zoneset
Answer:

A

Discussions

Question 5 Topic 4

Topic 4
The principal switch on a Fibre Channel network fails to assign requested domain to a subordinate switch. What are two
reasons? (Choose two.)

  • A. Cisco Fabric Services distribution is not enabled on the switch.
  • B. The fabric is locked.
  • C. The requested domain is outside the allowed list.
  • D. The persistent FC ID feature is not enabled.
  • E. An existing switch already has the requested domain assigned.
Answer:

C E

Discussions

Question 6 Topic 4

Topic 4
After a subordinate switch requests a domain ID form a principal switch, the requested domain ID becomes the runtime
domain ID, and all interfaces on the affected VSAN are isolated. What is a solution to the issue?

  • A. Add the received ID to the allowed list.
  • B. Configure a static domain on the subordinate switch and reboot the switch.
  • C. Enable the FICON feature on the affected VSAN.
  • D. Configure IVR NAT on the affected VSAN.
Answer:

A

Discussions

Question 7 Topic 4

Topic 4

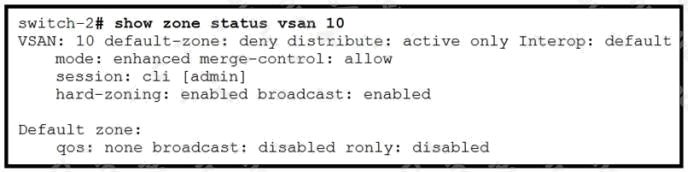

Refer to the exhibit.

A user who is logged in as an operator cannot update the zoneset. What is the cause of this issue?

  • A. The fabric is locked by admin on switch-2.
  • B. Hard zoning is enabled.
  • C. Merge control is disabled.
  • D. The switch has a conflicting domain ID.
  • E. The fabric is locked by admin on another switch.
Answer:

A

Discussions

Question 8 Topic 4

Topic 4
A domain ID conflict is detected on a switch. Which action resolves the issue in the shortest possible time after the preferred
domain ID is changed to a static domain ID?

  • A. Issue an fcdomain disruptive restart.
  • B. Issue an fcdomain nondisruptive restart.
  • C. Enter the commands for a VSAN suspend / no-suspend.
  • D. Enter the commands to complete a domain manager fast restart.
Answer:

A

Discussions

Question 9 Topic 4

Topic 4

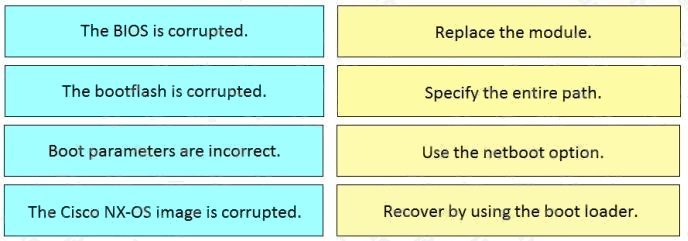

DRAG DROP
Drag and drop the boot issues from the left onto the correct solutions on the right.
Select and Place:

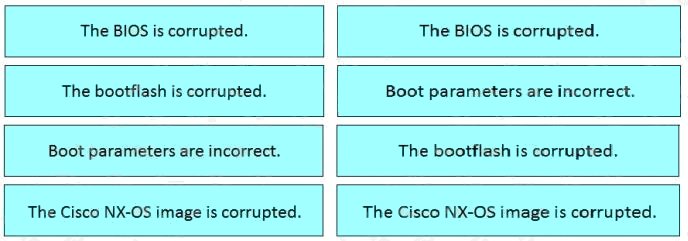

Answer:

Discussions

Question 10 Topic 4

Topic 4

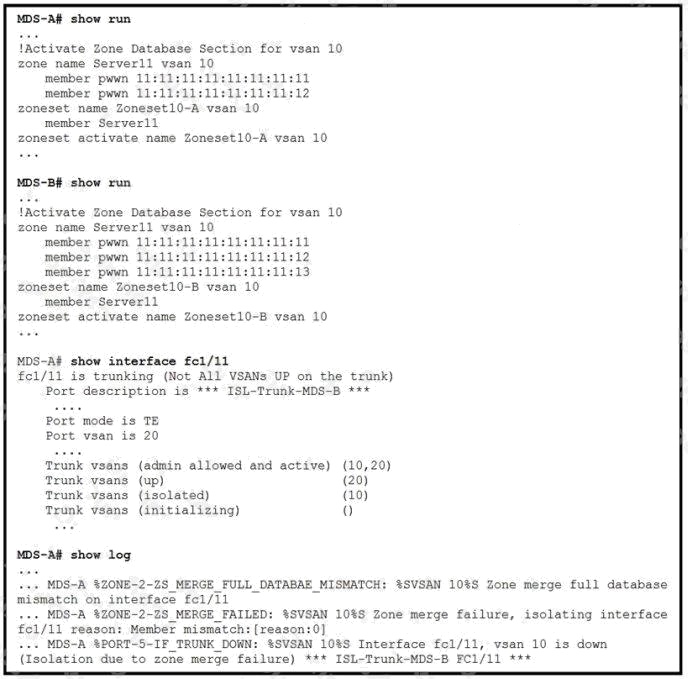

Refer to the exhibit.

A storage network engineer gets remote access to two Cisco MDS 9000 Series Switches with an ISL trunk and receives
several log messages. Which set of actions resolve the problem while least affecting service?

  • A. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A. 2. shut/no shut interface fc1/11 on MDS-A.
  • B. 1. Deactivate zone set Zoneset10-A on MDS-A. 2. shut/no shut interface fc1/11 on MDS-A.
  • C. 1. Add :11:11:11:11:11:11:11:13 pwwn in zone Server11 and activate Zoneset10-A on MDS-A. 2. Remove VSAN 10 from the allowed VSAN range of interface fc1/11 on MDS-A and add it back in the range.
  • D. 1. Explicitly import zone set Zoneset10-A on MDS-B using the zoneset import interface import fc1/11 vsan 10 command. 2. Activate the zone set Zoneset10-A.
Answer:

A

Discussions
