cisco 300-430 practice test
Implementing Cisco Enterprise Wireless Networks (300-430 ENWLSI)
Question 1
On a branch office deployment, it has been noted that if the FlexConnect AP is in standalone mode
and loses connection to the WLC, all clients are disconnected, and the SSID is no longer advertised.
Considering that FlexConnect local switching is enabled, which setting is causing this behavior?
- A. ISE NAC is enabled
- B. 802.11r Fast Transition is enabled
- C. Client Exclusion is enabled
- D. FlexConnect Local Auth is disabled
Answer:
D
Question 2
An engineer must implement intrusion protection on the WLAN. The AP coverage is adequate and
on-channel attacks are the primary concern. The building is historic, which makes adding APs
difficult. Which AP mode and submode must be implemented?
- A. AP mode: local, AP submode: none
- B. AP mode: monitor, AP submode: WIPS
- C. AP mode: monitor, AP submode: none
- D. AP mode: local, AP submode: WIPS
Answer:
D
Question 3
An engineer is implementing a FlexConnect group for access points at a remote location using local
switching but central DHCP. Which client feature becomes available only if this configuration is
changed?
- A. multicast
- B. static IP
- C. fast roaming
- D. mDNS
Answer:
B
Question 4
A FlexConnect remote office deployment is using five 2702i APs indoors and two 1532i APs outdoors.
When a code upgrade is performed and FlexConnect Smart AP Image Upgrade is leveraged, but no
FlexConnect Master AP has been configured, how many image transfers between the WLC and APs
will occur?
- A. 1
- B. 2
- C. 5
- D. 7
Answer:
B
Question 5
Where is a Cisco OEAP enabled on a Cisco Catalyst 9800 Series Wireless Controller?
- A. RF Profile
- B. Flex Profile
- C. Policy Profile
- D. AP Join Profile
Answer:
B
Question 6
When configuring a Cisco WLC, which CLI command adds a VLAN with VLAN ID of 30 to a
FlexConnect group named BranchA-FCG?
- A. config flexconnect BranchA-FCG vlan 30 add
- B. config flexconnect BranchA-FCG vlan add 30
- C. config flexconnect group BranchA-FCG vlan 30 add
- D. config flexconnect group BranchA-FCG vlan add 30
Answer:
D
Question 7

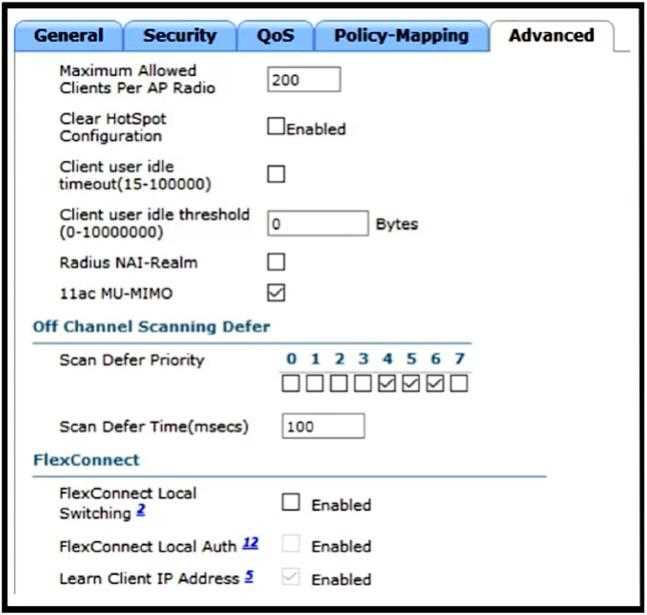

Refer to the exhibit.
A customer has implemented Cisco FlexConnect deployments with different WLANs around the
globe and is opening a new branch in a different location. The engineer’s task is to execute all the
wireless configuration and to suggest how to configure the switch ports for new APs. Which
configuration must the switching team use on the switch port?
- A. trunk mode
- B. access mode
- C. single VLAN
- D. multiple VLAN
Answer:
A
Question 8
A corporation is spread across different countries and uses MPLS to connect the offices. The senior
management wants to utilize the wireless network for all the employees. To ensure strong
connectivity and minimize delays, an engineer needs to control the amount of traffic that is
traversing between the APs and the central WLC. Which configuration should be used to accomplish
this goal?
- A. FlexConnect mode with central switching enabled
- B. FlexConnect mode with central authentication
- C. FlexConnect mode with OfficeExtend enabled
- D. FlexConnect mode with local authentication
Answer:
D
Question 9
An engineer configures a Cisco Aironet 600 Series OfficeExtend AP for a user who works remotely.
What is configured on the Cisco WLC to allow the user to print a printer on his home network?
- A. split tunneling
- B. SE-connect
- C. FlexConnect
- D. AP failover priority
Answer:
A
Explanation:
Reference: https://www.cisco.com/c/en/us/support/docs/wireless/aironet-602-officeextend-access-point/117540-configure-splittunneloeap-00.html
Question 10
An engineer must configure a Cisco WLC to support Cisco Aironet 600 Series OfficeExtend APs. Which
two Layer 2 security options are supported in this environment? (Choose two.)
- A. Static WEP + 802.1X
- B. WPA+WPA2
- C. Static WEP
- D. CKIP
- E. 802.1X
Answer:
BC
Question 11
An organization is supporting remote workers in different locations. In order to provide wireless
network connectivity and services, OfficeExtend has
been implemented. The wireless connectivity
is working, but users report losing connectivity to their local network printers. Which solution must
be used to address this issue?
- A. OEAP gateway override
- B. OEAP split tunnel
- C. WLAN static IP tunneling
- D. FlexConnect local switching
Answer:
B
Question 12
What is configured to use more than one port on the OEAP to extend the wired network?
- A. remote LAN ACL
- B. AAA override
- C. client load balancing
- D. remote LAN
Answer:
D
Question 13
An engineer must implement Cisco Identity-Based Networking Services at a remote site using ISE to
dynamically assign groups of users to specific IP subnets. If the subnet assigned to a client is available
at the remote site, then traffic must be offloaded locally, and subnets are unavailable at the
remote site must be tunneled back to the WLC. Which feature meets these requirements?
- A. learn client IP address
- B. FlexConnect local authentication
- C. VLAN-based central switching
- D. central DHCP processing
Answer:
C
Question 14
An engineer must configure Cisco OEAPs for three executives. As soon as the NAT address is
configured on the management interface, it is noticed that the WLC is not responding for APs that
are trying to associate to the internal IP management address. Which command should be used to
reconcile this?
- A. config flexconnect office-extend nat-ip-only disable
- B. config network ap-discovery nap-ip-only enable
- C. config flexconnect office-extend nat-ip-only enable
- D. config network ap-discovery nat-ip-only disable
Answer:
D
Question 15
An engineer is responsible for a wireless network for an enterprise. The enterprise has distributed
offices around the globe, and all APs are configured in FlexConnect mode. The network must be
configured to support 802.11r and CCKM. What needs to be implemented to accomplish this goal?
- A. Enable VLAN-based central switching.
- B. Enable FlexConnect local authentication.
- C. Enable FlexConnect local switching.
- D. Create FlexConnect groups.
Answer:
D
