avixa cts practice test

Question 1

[Managing AV Projects]

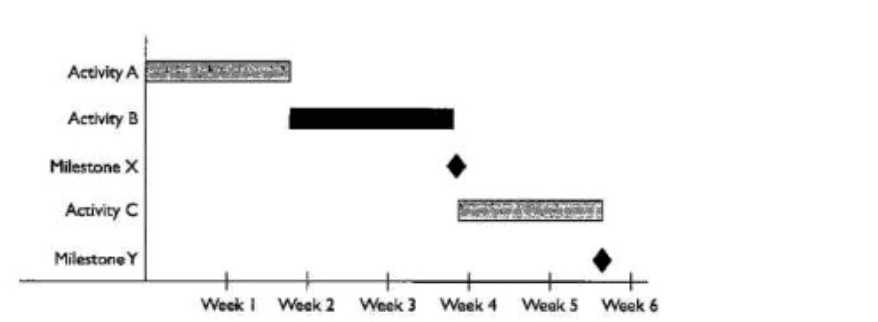

According to the Gantt chart pictured, the Project Manager should wait to start Activity C until which
predecessor has been reached?

• A. Week 3
• B. Week 4
• C. Activity B
• D. Milestone X

Question 2

[Performing Maintenance and Servicing]
As part of a service agreement offering, wfwt PRIMARY role do preventive maintenance visits
(PM/PMV) play?

• A. allows the AV provider toclean, service and assess equipment In the field on a regular basis
• B. allows the AV provider to check in with customer and serves as an opportunity to sell further solutions
• C. allows the AV provider tosell a service that is often forgotten by the customer, and therefore generate greater profit
• D. allows the AV provider access to client premises and scope future work

Question 3

[Developing AV Solutions]
Which frequencies are amplified by a subwoofer?

• A. lowest
• B. mid-low
• C. mid-high
• D. highest

Question 4

HOTSPOT
[Developing AV Solutions]

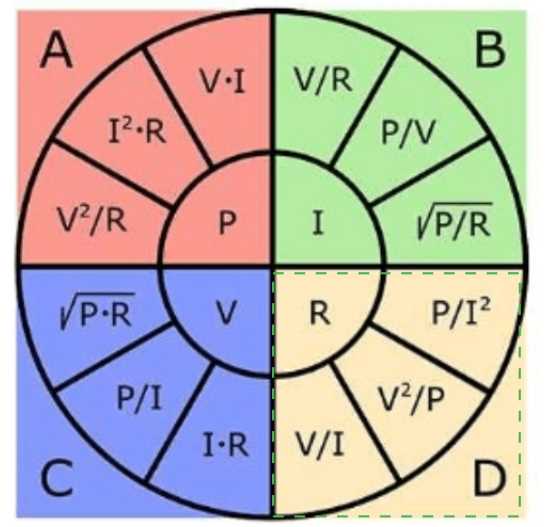

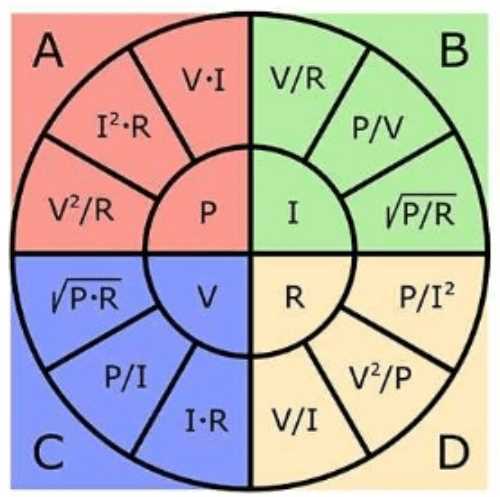

Which section of the Ohm's Law chart should be used to calculate values expressed in Ohms? Select
the answer by clicking anywhere within the correct quadrant.

Question 5

[Conducting a Needs Assessment]
When doing a site survey, it is MOST IMPORTANT to consider the client's

• A. budget.
• B. timeline.
• C. expectations.
• D. knowledge of technology.

Question 6

[Developing AV Solutions]
As the height of a character increases on a display.

• A. legibility increases.
• B. legibility decreases.
• C. brightness increases.
• D. brightness decreases.

Question 7

[Developing AV Solutions]

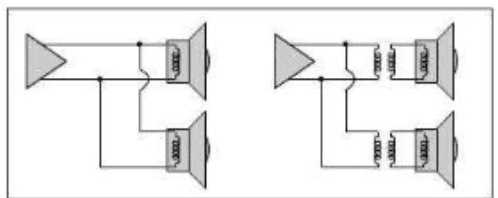

Assuming that the speakers in the picture on the LEFT are 8 Q drivers, what is the impedance of the
speaker system on the left?

• A. 2Q
• B. 4Q
• C. 8Q
• D. 16Q

Question 8

[Developing AV Solutions]
During a routine service visit, an engineer notices an LED indicator on a projector's front panel
blinking regularly. What should be done?

• A. consult the projector's manual
• B. replace the projector's lamp and filters
• C. disregard because the projector is operational
• D. remove the power cable and re-boot the projector

Question 9

[Designing AV Systems]
When connecting a condenser microphone, what MUST be included in die system design for it to
operate?

• A. mixer
• B. stand
• C. transmitter
• D. power source

Question 10

[Developing AV Solutions]
When creating an estimate for a request for proposal (RFP), what is the FIRST tiling that should be
done?

• A. obtain the costs
• B. create the submittal
• C. schedule a site visit
• D. read the project description

Question 11

[Developing AV Solutions]
Network Quality of Service (QoS) is defined as

• A. the ability to prioritize the traffic in the network system.
• B. the ability to set the quantity of stations connected via the network.
• C. the ability to remotely manage network switches, routers and hubs via the network connection.
• D. a feature allowing the network administrator to monitor who is connected to the network at any given time.

Question 12

[Developing AV Solutions]
A saeen is 144 in (3658 mm) wide and the throw ratio is 2.3:1. How far from the screen should the
projector be placed?

• A. 288 In (7303 mm)
• B. 302 in (7681 mm)
• C. 331 in (8413 mm)
• D. 446 in (11339 mm)

Question 13

[Developing AV Solutions]
Which method of control is supported by HDBaseT?

• A. PCIE
• B. DAU
• C. RS-232
• D. DMX512

Question 14

[Developing AV Solutions]
During project delivery and after completion, it is important to ensure correct management of
control system code so that

• A. programming costs will be within project budget.
• B. other contractors are unable to reuse or edit code.
• C. the most up-to-date version of code is available for upload when required.
• D. sub-contract programmers submit uncompiled code as per their contract of employment.

Question 15

[Developing AV Solutions]

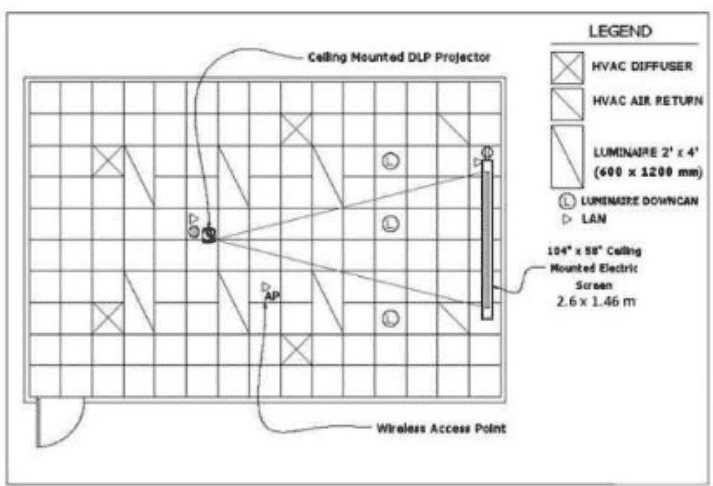

Assuming a 10' (3 m) ceiling, what is the approximate volume of this room?

• A. 300 cubic ft (8.5 m3)
• B. 600 cubic ft (17 m3)
• C. 1500 cubic ft (42.5 m3) o
• D. 6000 cubic ft (162 m3)
