Arcitura c90-06 practice test
Cloud Architecture Lab Exam
Question 1

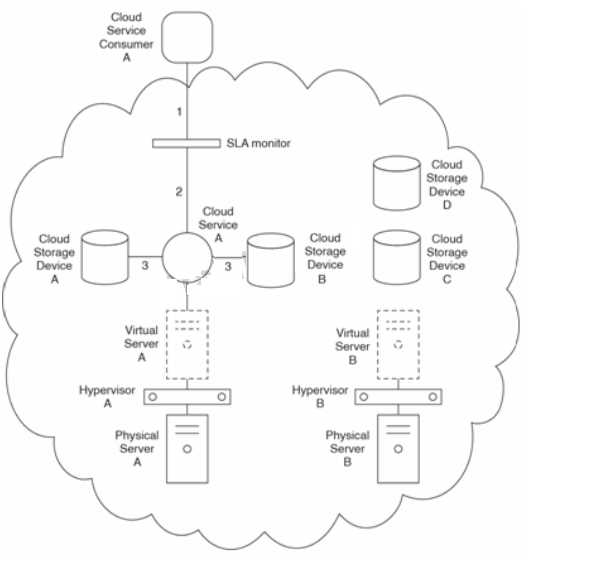

Cloud Service A is hosted by Virtual Server A, which is hosted by Hypervisor A on Physical Server A.
Virtual Server B is hosted by Hypervisor B on Physical Server B.
Cloud Service Consumer A accesses Cloud Service A and the request is intercepted by an SLA monitor
(1). Cloud Service A receives the request (2) and accesses Cloud Storage Device A and Cloud Storage
Device B (3).
Cloud Service Consumer A belongs to Organization A, which is leasing all of the IT resources shown in
the figure as part of an laaS environment.
- A. The Intra-Storage Device Vertical Data Tiering pattern can be applied to enable dynamic scaling between Cloud Storage Devices A, B and C. The Dynamic Failure Detection and Recovery pattern can be applied to establish a resilient watchdog system that is able to respond dynamically to prevent data loss. The Service State Management pattern can be applied to keep a copy of the data in Cloud Storage Devices A, B and C during the maintenance outages.
- B. The Cross-Storage Device Vertical Tiering pattern can be applied to enable dynamic scaling between Cloud Storage Devices A, B and C. The Redundant Storage pattern can be applied by designating Cloud Storage Device D as the secondary storage to which Organization A's data can be replicated. In order to prevent planned or unplanned outages from affecting Organization A's data access, the Storage Maintenance Window pattern can be applied to replicate the data in Cloud Storage Device D for retrieval before the outages begin.
- C. The Load Balanced Virtual Switches pattern can be applied to increase the bandwidth of Physical Server A so that data processing problems within Cloud Storage Device A can be prevented. The Non- Disruptive Service Relocation pattern can be applied to automatically relocate Cloud Storage Device A to Physical Server B so that data access is not interrupted. The Storage Maintenance Window pattern can be applied to replicate the data in Cloud Storage Device D for retrieval before the outages begin.
- D. None of the above.
Answer:
B
Question 2
Cloud Service A accesses LUN Aon Cloud Storage Device A when it receives requests to process data
- A. The Bare-Metal Provisioning pattern can be applied to remotely provision Physical Server C with the operating system required to deploy the legacy systems. The Automated Administration pattern can be applied to enable Organization A to create custom scripts that can carry out the deployment of the legacy system components via the use of an intelligent automation engine. To provide Organization X with the tools to monitor IT resource usage and collect usage data so that security breaches and other impacts do not occur, the Usage Monitoring pattern can be applied to establish the required custom monitoring functionality.
- B. The Bare-Metal Provisioning pattern can be applied to enable Organization A to provisioning Physical Server C with legacy systems after the operating system has been installed. The Synchronized Operating State pattern can be applied to consolidate Organization A's legacy systems via a centralized administration portal from which it can then automate their deployment. The Automated Administration pattern can be applied to establish a series of workflow scripts customized to monitor and log proprietary legacy system behavior.
- C. The Rapid Provisioning pattern can be applied to enable Physical Server C to be remotely provisioned with the operating system and legacy systems. The Centralized Remote Administration pattern can be applied to enable Organization A's employees to remotely manage and administer legacy system deployment. The Pay-as-You-Go pattern can be applied to establish the custom monitoring functionality required by Organization A's legacy systems.
- D. None of the above.
Answer:
A
Question 3
Cloud Service A is installed on Virtual Server A and the database it accesses is located on Cloud
- A. The Resource Reservation pattern can be applied to ensure that Virtual Servers A and B are not accessed by any cloud consumers other than Organization A, thereby enabling their respective capacity to be maximized. A second hypervisor can be implemented and the Synchronized Operating State pattern can be applied to emulate the usage of the resource cluster mechanism with the two hypervisors. This will prevent Cloud Service A from being affected if one of the hypervisors fails. The Service State Management pattern can be applied to establish a secondary cloud storage device that can be accessed by Cloud Service A whenever Cloud Storage Device A becomes inaccessible.
- B. The Elastic Resource Capacity pattern can be applied to enable resources to be assigned to the virtual servers dynamically. The Hypervisor Clustering pattern can be applied to avoid jeopardizing the availability of Cloud Service A when its underlying hypervisor fails. The Multipath Resource Access pattern can be applied to establish an alternative path to Cloud Storage Device A. Cloud Service A can then be designed to access Cloud Storage Device A via the alternative path whenever access via the original path fails.
- C. The Elastic Resource Capacity pattern can be applied to enable resources to be assigned to the virtual servers dynamically. The Resource Pooling pattern can be applied to allow Hypervisor A to be part of a larger hypervisor pool. The Cross-Storage Device Vertical Tiering pattern can be applied to allow Cloud Service A to access Cloud Storage Device A via different tiers.
- D. None of the above.
Answer:
B
Question 4
Physical Server A hosts Hypervisor A which hosts Virtual Server A, Virtual Server B and an active
- A. The Load Balanced Virtual Server Instances pattern can be applied in combination with the Elastic Network Capacity pattern in order to establish a system whereby Ready-Made Environment A can be smoothly transitioned between hypervisors in the same cluster, while its underlying virtual server maintains the network connection.
- B. The Hypervisor Clustering pattern was incorrectly applied and therefore needs to be re-applied correctly in order to establish a native system capable of instantly relocating virtual servers between hypervisors within the same cluster. The Direct I/O Access pattern can then also be applied so that the virtual servers retain their network configurations regardless of which hypervisor within the cluster they reside on.
- C. The Non-Disruptive Service Relocation pattern can be applied to place a secondary copy of Ready- Made Environment A on Hypervisor B. The Persistent Virtual Network Configuration pattern can be applied so that virtual servers retain network configurations when moving to other hypervisors.
- D. The Load Balanced Virtual Server Instances and Persistent Virtual Network Configuration patterns can be applied together to ensure that the virtual servers retain their network configurations when moving to another hypervisor. The Redundant Storage pattern can further be applied to move the ready-made environment to another hypervisor without service impact.
Answer:
C
Question 5
Virtual Server A and Virtual Server B are hosted by Hypervisor A, which resides on Physical Server A.
- A. The Resource Reservation pattern can be applied to protect the Cloud Service A implementation via the use of a logical network perimeter. The Workload Distribution pattern can be applied to introduce a load balancing system for Cloud Service A. The Zero Downtime pattern can be applied to establish a system that allows Cloud Service A to be constantly available, even during maintenance outages.
- B. The Resource Pooling pattern can be applied to pool together Physical Server A, B and C, thereby enabling the Cloud Service A implementation to be migrated to a different physical server when its hosting physical server fails. The Dynamic Scalability pattern can be applied to establish a system whereby multiple instances of Cloud Service A can be created and an automated scaling listener can be used to redirect concurrent requests to the Cloud Service A instances. The Load Balanced Virtual Server Instances pattern can be applied to establish a system that distributes instances of Cloud Service A to Virtual Server B.
- C. The Non-Disruptive Service Relocation pattern can be applied to establish a system that uses live VM migration to move the virtual server hosting Cloud Service A to a new physical server without allowing any downtime. The Dynamic Scalability pattern can be applied to establish a system whereby multiple instances of Cloud Service A can be created and an automated scaling listener can be used to redirect concurrent requests to the Cloud Service A instances. The Non-Disruptive Service Relocation pattern can be applied to establish a system whereby cloud service consumer requests to Cloud Service A can be temporarily redirected to a duplicate implementation of Cloud Service A while the original implementation undergoes a maintenance outage.
- D. None of the above.
Answer:
C
Question 6
Cloud Service A requires access to Cloud Storage Device A and Cloud Storage Device B. Cloud Service
- A. The Elastic Network Capacity pattern can be applied to implement a system that dynamically assigns network ports to Virtual Server A before its processing capacity thresholds are reached. The Redundant Physical Connection for Virtual Servers pattern can be applied to create an alternative path to LUN B in Cloud Storage Device B. The Resource Pooling pattern can be applied to synchronize Cloud Storage Device A with other cloud storage devices.
- B. The Resource Reservation pattern can be applied to dynamically provision resources to Virtual Server A whenever its processing thresholds are being reached. The Persistent Virtual Network Configuration pattern can be applied to establish a persistent hyperlink to LUN B over the virtual network that cannot be lost. The Elastic Resource Capacity pattern can be applied to prevent Cloud Storage Device A from encountering resource constraints.
- C. The Elastic Resource Capacity pattern can be applied to establish a system that can dynamically allocate resources to Virtual Server A. The Multipath Resource Access pattern can be applied to establish a multipathing system that can provide an alternative path to LUN B in Cloud Storage Device B. The Resource Reservation pattern can be applied to establish a system that enables Organization A to have exclusive access to pre-defined resources on Cloud Storage Device A for a given period of time.
- D. None of the above.
Answer:
C
Question 7
Cloud Service A is hosted by Virtual Server A, which is hosted by Hypervisor A that resides on
- A. The Pay-as-You-Go pattern can be applied together with the Usage Monitoring pattern to establish a monitoring and billing system capable of de-provisioning Cloud Service A instances when they are no longer required. The Dynamic Data Normalization pattern can be applied to eliminate any redundant data stored by Cloud Consumer A so that the amount of required storage space is minimized.
- B. The Platform Provisioning pattern can be applied to create an intelligent automation script capable of immediately de-provisioning cloud service instances. The Redundant Storage pattern can be applied to introduce a secondary cloud storage device for which storage space can be billed based on actual usage.
- C. The Self-Provisioning pattern can be applied to enable the organization that owns Cloud Service Consumer B to configure how and to what extent Cloud Service A instances need to be provisioned. The Resource Management pattern can be applied to establish a storage system that bills cloud consumers for actual storage space usage only.
- D. None of the above.
Answer:
D
Question 8
Cloud Service A and Cloud Service B perform different functions but both share access to Cloud
Storage Device A when fulfilling requests from cloud service consumers that require data access.
Cloud Services A and B are hosted by Virtual Server A, which is hosted by Hypervisor A on Physical
Server A.
Cloud Service Consumer A accesses Cloud Service A to issue a request for data (1). Cloud Service A
queries a database in Cloud Storage Device A to retrieve the data (2). Upon receiving the requested
data, Cloud Service Consumer A combines it with additional data to form a new collection of data.
Cloud Service Consumer A then accesses Cloud Service B and provides it with the new data (3). Cloud
Service B accesses a different database in Cloud Storage Device A to store the new data (4). Cloud
Consumer B accesses the usage and administration portal to upload new data (5). The data is
uploaded to Cloud Storage Device B (6).
- A. The Resource Pooling pattern can be applied to pool the IT resources used by Cloud Service A so that requests from Cloud Service Consumer A can utilize these resources during peak usage times. The Non-Disruptive Service Relocation pattern can be applied so that, in the event of failure, Cloud Storage Device B can be migrated at runtime to a cloud in another geographic region. The Elastic Disk Provisioning pattern can be applied so that Organization B is only charged for the amount of data storage it uses.
- B. The Service Load Balancing pattern can be applied to balance the workloads across multiple Cloud Service A implementations. The Synchronized Operating State pattern can be applied so that Virtual Server A is automatically synchronized to a secondary implementation of Physical Server A located in a different geographic region. The Usage Monitoring pattern can be applied so Cloud Consumer B's resource consumption is tracked and logged at runtime.
- C. The Service Load Balancing pattern can be applied to create redundant service implementations of Cloud Service A, so that a load-balancing system can distribute workloads across the service implementations dynamically. The Zero Downtime pattern can be applied to establish a secondary deployment of Physical Server A in a different data center located in a different geographic region. The Elastic Disk Provisioning pattern is applied together with the Payas-You-Go pattern to establish systems that ensure that Cloud Consumer B is charged only for the amount of data and resources it consumes.
- D. None of the above.
Answer:
C
Question 9

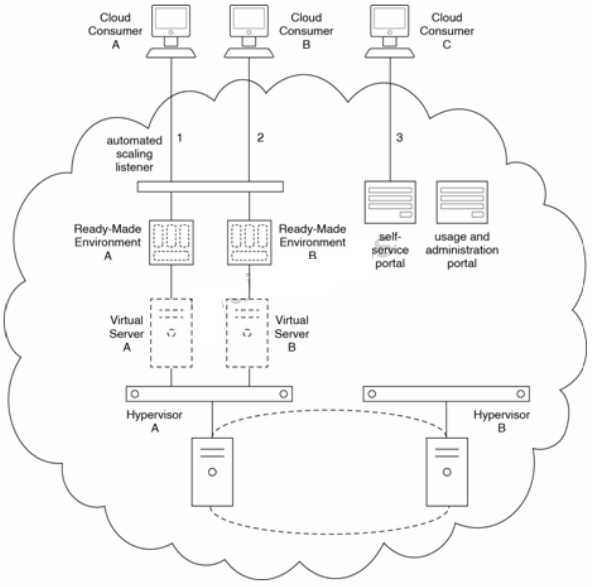

Ready-Made Environment A is hosted by Virtual Server A and Ready-Made Environments is hosted
by Virtual Server B. Virtual Servers A and B are hosted by Hypervisor A, which is part of a hypervisor
cluster. An automated scaling listener intercepts cloud consumer requests and automatically invokes
the on-demand generation of additional instances of ready-made environments, as required.
A self-service portal and a usage and administration portal are also available to cloud consumers.
The self-service portal can be used to request the provisioning of a new ready-made environment.
Any cloud consumer that has already had a ready-made environment provisioned can configure and
view information about that ready-made environment via the usage and administration portal.
Cloud Consumer A accesses Ready-Made Environment A to work on the development of a new cloud
service (1). Cloud Consumer B accesses Ready-Made Environment B to test a recently completed
application comprised of three cloud services (2). Cloud Consumer C accesses the self-service portal
to request the creation of a new ready-made environment (3).
The cloud provider is required to perform an emergency maintenance outage on a cloud storage
device used by all ready-made environments. The unplanned outage takes two hours. During this
period, Cloud Consumers A and B are unable to access Ready-Made Environments A and B and Cloud
Consumer C receives an error when submitting a request to create a new ready-made environment.
After the maintenance outage is over, Cloud Consumers A and B encounter the following problems:
Cloud Consumer A is unable to recover session data that was kept in memory for an extended
period, prior to the time of the outage.
Cloud Consumer B has no access to Virtual Server B, which was moved to Hypervisor B during the
maintenance outage. When Cloud Consumer B attempts to ping Virtual Server B, the request times
out.
Even though Cloud Consumer C is able to log into the usage and administration portal to confirm that
its ready-made environment was successfully provisioned, the unexpected outage has raised
concerns about the stability of the ready-made environment's underlying infrastructure. Cloud
Consumer C informs the cloud provider that it cannot proceed with its lease of the ready-made
environment if there are future occurrences of this type of maintenance outage.
Which of the following statements can help address the problems and concerns of the three cloud
consumers?
- A. A combination of the Load Balanced Virtual Server Instances and Synchronized Operating State patterns can be applied to establish a system capable of deferring state across multiple cloud storage devices, each located on a different virtual server. The Elastic Disk Provisioning pattern can be applied to persist virtual server configuration data across hypervisors so that connectivity is preserved whenever a virtual server is relocated to a different hypervisor. The Zero Downtime pattern can be applied to ensure that none of the ready-made environments or virtual servers are subject to a maintenance outage in the future.
- B. The Elastic Disk Provisioning and Cross-Storage Device Vertical Tiering patterns can be applied to establish a cloud architecture that supports a set of cloud storage devices, each with different tiers that cloud consumers can choose to scale to The Synchronized Operating State pattern can be applied in combination with the Hypervisor Clustering pattern to avoid further virtual server and ready-made environment connectivity problems. The Redundant Storage pattern can be applied so that if a cloud storage device fails, a secondary implementation of the cloud storage device automatically takes over processing tasks, thereby avoiding outages.
- C. The Service State Management pattern can be applied to establish a system that can persist session data in a database. The Persistent Virtual Network Configuration pattern can be applied to centralize the configuration data necessary for virtual servers to remain accessible after they have been relocated to different hypervisors. The Storage Maintenance Window pattern can be applied to establish a system that allows cloud storage devices to be maintained without causing outages.
- D. None of the above.
Answer:
C
Question 10
A cloud provider has two cloud environments (Cloud A and Cloud B) that are in different geographical
- A. The Zero Downtime pattern can be applied to establish a cross-cloud failover system for the two Cloud Service A implementations. The Cross-Storage Device Vertical Tiering pattern can be applied to vertically scale data in Cloud Storage Device A across multiple other cloud storage devices dynamically. The Centralized Remote Administration pattern can be applied to establish a logical network perimeter around Organization A's IT resources, thereby protecting them from other cloud consumer organizations.
- B. The Dynamic Failure Detection and Recovery pattern can be applied so that if Cloud Service A in Cloud A fails, a watchdog system attempts to automatically recover Cloud Service A. Assuming Cloud Storage Device A has support for multiple disk types, the Intra-Storage Device Vertical Data Tiering pattern can be applied so that Cloud Storage Device A is equipped with dynamic vertical scaling. The Resource Management pattern can be applied to allow cloud consumer organizations to perform management tasks on IT resources without impacting IT resources being used by other cloud consumer organizations.
- C. The Load Balanced Virtual Server Instances pattern can be applied to balance the virtual servers hosting Cloud Service A implementations across the two cloud environments. The Storage Workload Management pattern can be applied to balance workloads across both Cloud Storage Device A implementations. The Resource Reservation pattern can be applied to establish a physical network boundary around Organization A's IT resources, thereby protecting them from other cloud consumer organizations.
- D. None of the above.
Answer:
B
