# Arcitura c90-03 practice test

## Cloud Technology Lab Exam

##### Question 1

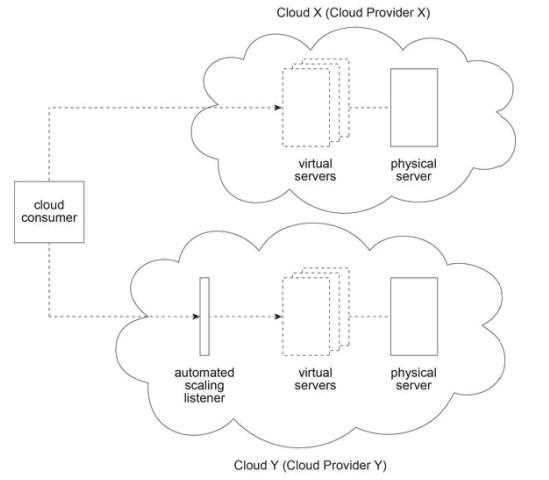

A cloud consumer is interested in leasing cloud-based virtual servers. It compares the virtual servers
offered by Cloud Provider X and Cloud Provider Y. Cloud X (owned by Cloud Provider X) and Cloud Y
(owned by Cloud Provider Y) both provide shared physical servers that host multiple virtual servers
for other cloud consumers. The virtual servers on Cloud X are accessed directly, whereas the virtual
servers on Cloud Y are accessed via an automated scaling listener. On Cloud X, virtual servers are pre-
configured to support a specific amount of concurrent cloud service consumers. When this threshold
is exceeded, cloud service consumer requests are rejected. Due to the use of the automated scaling
listener, virtual servers on Cloud Y can provide a greater level of elasticity.

The hourly cost to the cloud consumer to use a virtual server on Cloud X is half that of the cost to use
a virtual server on Cloud Y. Within a one month period, Cloud Provider X bases its hourly charge on
the maximum number of virtual servers used. Within a one month period, Cloud Provider Y bases its
hourly charges on actual virtual server usage. Cloud Provider Y charges \$20 for each hour that a
cloud consumer uses a virtual server. The cloud consumer predicts its monthly usage requirements
to be as follows:
Number Of Virtual Servers
Usage
20 Hours
30 Hours
50 Hours
The cloud consumer is required to choose the cloud provider with the lowest on-going cost, based on
its predicted usage. Which of the following statements accurately calculates the on-going usage costs
of Cloud Providers X and Y and correctly states the cloud provider that the cloud consumer must
choose?

• A. The total usage duration is (20 + 30 + 50) x 12 hours = 1,200 hours. The actual usage is (20 X 3) + (30 X4) + (50 X 5) server hours = 430 server hours. The cost of using virtual servers from Cloud ProviderXis12X5X\$10 = \$600. The cost of using virtual servers from Cloud Provider Y is 430 X \$20 = \$8,600. The cloud consumer must therefore choose Cloud Provider X.
• B. The total usage duration is (20 + 30 + 50) hours = 100 hours. The actual usage is (20 + 30 + 50) X 5 server hours = 500 server hours. The cost of using virtual servers from Cloud Provider X is (500 X 5 X\$10) = \$25,000. The cost of using virtual servers from Cloud Provider Y is (500 X \$20) = \$10,600. The cloud consumer must therefore choose Cloud Provider Y.
• C. The total usage duration is (3 x 20) + (4 x 30) + (5 x 50) hours = 430 hours. The actual usage is (20 + 30 + 50) hours = 100 hours. The cost of using virtual servers from Cloud Provider X is (430 X \$10) = \$4,300. The cost of using virtual servers from Cloud Provider Y is (100 X \$20) = \$2,000. The cloud consumer must therefore choose Cloud Provider Y.
• D. The total usage duration is (20 + 30 + 50) hours = 100 hours. The actual usage is (20X3)+ (30X4) + (50X5) hours =430 hours. The cost of using virtual servers from Cloud Provider Xis100X5X\$10 = \$5,000. The cost of using virtual servers from Cloud Provider Y is 430 X \$20 = \$8,600. The cloud consumer must therefore choose Cloud Provider X.

D

Discussions
0 / 600

##### Question 2

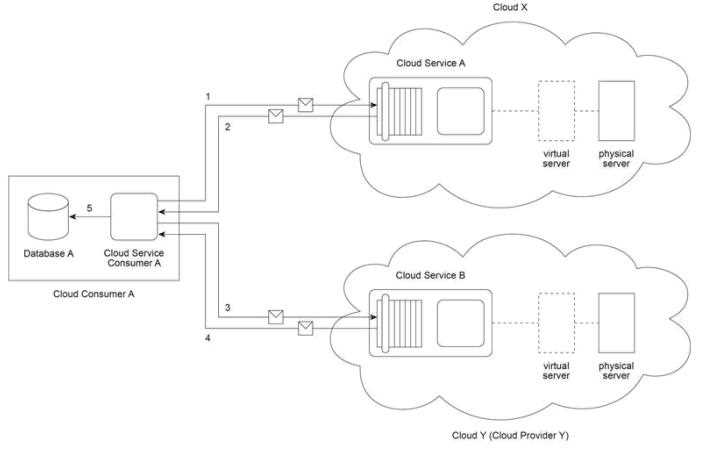

Cloud Service Consumer A accesses Cloud Service A (1) that resides in Cloud X. a private cloud owned
by the same organization acting as Cloud Consumer A . Cloud Service A processes the message from
Cloud Service Consumer A and then sends back a response with the requested data (2). Next, Cloud
Service Consumer A sends a message containing some of this data to Cloud Service B (3), which
resides in public Cloud Y that is owned by Cloud Provider Y. After processing the message, Cloud
Service B sends back a response with additional data to Cloud Service Consumer A (4). Finally, Cloud
Service Consumer A writes the data it collected from Cloud Services A and B to Database A (5).

Recently, Cloud Service Consumer A has been required to access Cloud Services A and B at a
significantly higher rate, sometimes over 1,000 times within a given workday. This increased usage
has not affected Cloud Service B's performance. Cloud Service A, however, has been generating
runtime exceptions and responses to Cloud Service Consumer A have become increasingly slow and
unreliable. It is determined that this decline in performance is due to infrastructure limitations within
private Cloud Xs environment. Instead of investing in new infrastructure for Cloud X, it is decided to
explore the feasibility of moving Cloud Service A to Cloud Y instead. Which of the following
statements describe valid financial considerations that can be taken into account for assessing the
feasibility of this move?

• A. Moving Cloud Service A to Cloud Y will require that Database A also be moved to Cloud Y due to the need for Cloud Service A and Database A to share a common virtual server within the same organizational boundary, as required by the cloud-based security group. The move of Database A will increase the integration testing effort and. as a result, will also increase the overall integration costs.
• B. Once Cloud Service A is deployed in Cloud Y, it may form dependencies upon proprietary parts of Cloud Y that may limit its mobility should it be decided to move it outside of Cloud Y in the future. This can incur further locked-in costs that need to be accounted for.
• C. By moving Cloud Service A to Cloud Y, the SaaS delivery model will be established for Cloud Service A, thereby allowing the service implementation to build upon existing infrastructure from underlying PaaS and laaS delivery models that would have been required for Cloud Service B to be implemented in Cloud Y.
• D. Public Cloud Y charges for the use of its IT resources. Moving Cloud Service A to Cloud Y can therefore result in new on-going costs. Although Cloud Service A may be able to share some of the existing IT resources used by Cloud Service B, it will likely incur new on-going costs that need to be budgeted for.

B, D

Discussions
0 / 600

##### Question 3

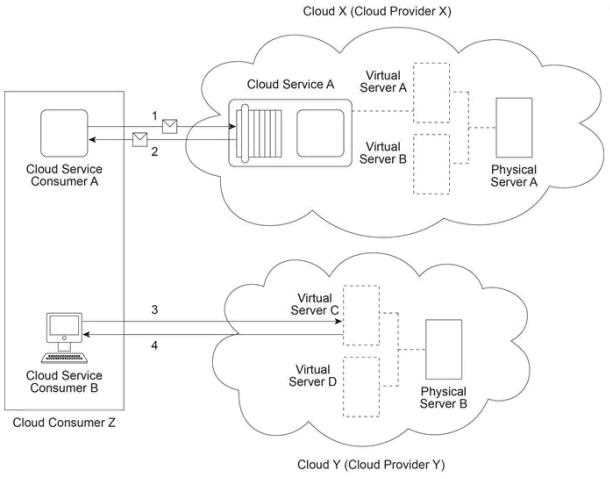

Cloud Provider X has deployed a virtualization environment in Cloud X comprised of Physical Server A
hosting Virtual Servers A and B. Cloud Provider X implements Cloud Service A on Virtual Server A and
makes it available to Cloud Service Consumer A, which interacts with Cloud Service A by sending and
receiving messages (1, 2). Cloud Provider Y has deployed a virtualization environment comprised of
Physical Server B hosting Virtual Servers C and D. Virtual Server C is made available to Cloud Service
Consumer B, which interacts with Virtual Server C (3,4) in order to prepare for the deployment of a
new cloud service that will be used internally by Cloud Provider Y to process data obtained from
Cloud Service A .

Cloud X is administered by a group of organizations and makes Cloud Service A available only to
cloud service consumers from that group. Cloud Consumer Z belongs to one of the organizations
within this group. Cloud Y and Cloud Consumer Z are owned by the same organization. Which of the
following statements provides a valid scenario that accurately describes the involvement of cloud
deployment models, cloud delivery models, roles and/or boundaries? (Note that the correct answer
represents one of multiple valid scenarios that can exist.)

• A. Clouds X and Y are based on the community cloud deployment model. Cloud Service A is based on the SaaS delivery model. Virtual Server C is being offered as part of the PaaS delivery model. A cloud resource administrator working for Cloud Provider X uses Virtual Server A to access the Cloud Service A implementation Cloud Consumer T s trust boundary encompasses Cloud Service Consumers A and B, Cloud Service A and Virtual Server C . The organization that owns Cloud Consumer Z is the cloud service owner of Cloud Service A .
• B. Cloud X is based on the hybrid cloud deployment model. Cloud Service A is based on the SaaS delivery model. Cloud Y is based on the community cloud deployment model. Virtual Server C is being offered as part of the IaaS delivery model. A cloud resource administrator working for Cloud Consumer Z uses Cloud Service Consumer A to access Cloud Service A . Cloud Consumer Z's organizational and trust boundaries encompass Cloud Service Consumers A and B, Cloud Service A and Virtual Server C .
• C. Cloud X is based on the community cloud deployment model. Cloud Service A is based on the SaaS delivery model. Cloud Y is based on the private cloud deployment model. Virtual Server C is being offered as part of the IaaS delivery model. A cloud resource administrator working for Cloud Consumer Z uses Cloud Service Consumer B to access Virtual Server C . Cloud Consumer Z' s trust boundary encompasses Cloud Service Consumers A and B, as well as Cloud Service A and Virtual Server C . The organization that owns Cloud Consumer Z will be the cloud service owner of the new cloud service that will be deployed on Virtual Server C .
• D. Cloud X is based on the community cloud deployment model. Cloud Service A is based on the SaaS delivery model. Cloud Y is based on the private cloud deployment model. Virtual Server C is being offered as part of the IaaS delivery model. A cloud resource administrator working for Cloud Consumer Z uses Cloud Service Consumer B to access Virtual Server C . Cloud Consumer Z is the cloud service owner of Cloud Service A . Cloud Consumer Ts organizational boundary encompasses Cloud Service Consumers A and B. Cloud Consumer Z's trust boundary encompasses Cloud Service A and Virtual Server C .

C

Discussions
0 / 600

##### Question 4

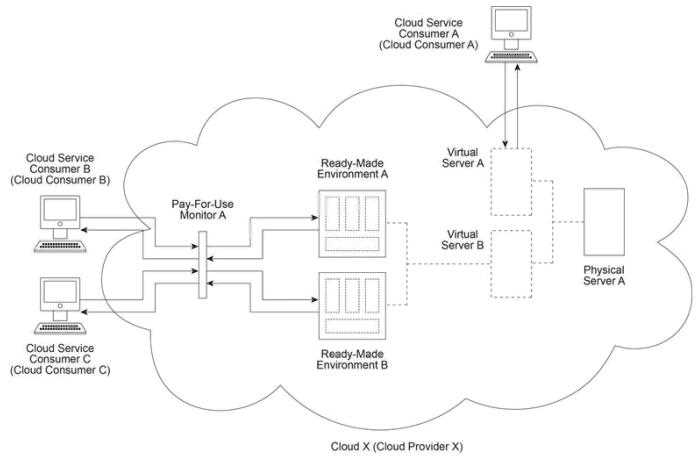

Cloud X (owned by Cloud Provider X) provides Physical Server A which hosts Virtual Servers A and B.
Virtual Server B hosts Ready-Made Environments A and B . Cloud Service Consumer A uses Virtual
Server A as part of an IaaS leasing agreement in which Cloud Consumer A is charged a fixed monthly
fee for unlimited access. Cloud Service Consumers B and C use Ready-Made Environments A and B
respectively as part of a PaaS leasing agreement based on per-minute usage fees. In both cases,
access is monitored via Pay-For-Use Monitor A, which keeps track of log-in and log-out times in order
to calculate the usage charges that are billed to Cloud Consumers B and C .

Physical Server A begins to become unstable. Over the course of a 24 hour period, the server shuts
down three times, taking down Virtual Servers A and B with it. This causes numerous problems for
Cloud Service Consumers A, B and C, which lose connections and encounter a variety of exceptions.
A subsequent investigation of the log files generated by Pay-For-Use Monitor A reveals that the three
server crashes coincided with the usage periods of Ready-Made Er n'ronment B b> Cloud Service
Consumer B. De 'elopers at the Cloud Consumer 3 organization confirm they did not actually log in
during those periods, which leads Cloud Provider X to discover that another cloud service consumer
has been posing as Cloud Service Consumer B in order to maliciously access Ready-Made
Environment B, Virtual Server B, and Physical Server B on Cloud X. The investigation concludes that
the malicious cloud service consumer was able to carry out the attack successfully by obtaining a
weak password being used by developers from Cloud Consumer B . Which of the following
statements accurately identifies the type of security threat that corresponds to the described attack -
and -provides a solution that can directly mitigate this type of security threat within Cloud X?

• A. Ready-Made Environment B. Virtual Server B and Physical Server B were subjected to a weak authentication attack that can be mitigated by implementing the encryption and digital signature mechanisms.
• B. Ready-Made Environment B. Virtual Server B and Physical Server B were subjected to a malicious intermediary attack that can be mitigated by implementing the cloud-based security groups and hardened virtual server images mechanisms.
• C. Ready-Made Environment B, Virtual Server B and Physical Server B were subjected to a virtualization attack that can be mitigated by implementing the encryption and digital signature mechanisms.
• D. Ready-Made Environments, Virtual Server B and Physical Server B were subjected to an attack that succeeded due to overlapping trust boundaries. This type of attack can be mitigated by implementing the single sign-on mechanism.

A

Discussions
0 / 600

##### Question 5

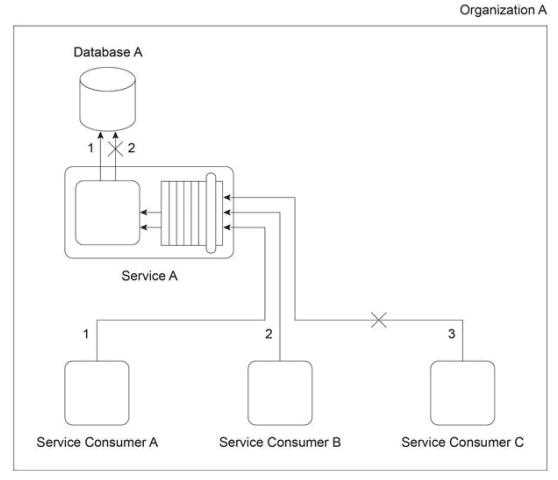

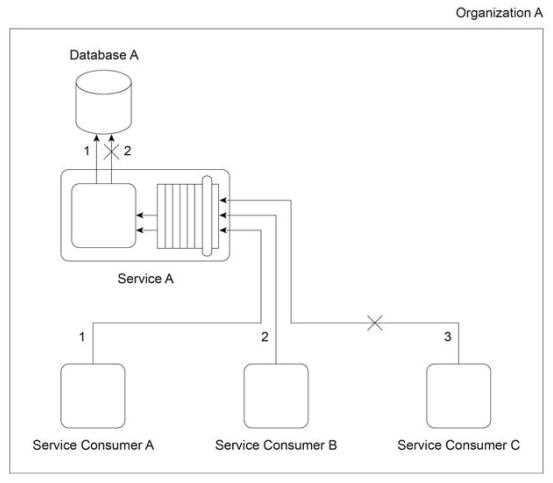

Organization A has been expanding and, as a result, is outgrowing the processing capacity of its on-
premise Service A implementation. It is determined that this is due to usage thresholds of Service A
and complex data processing limitations in Database A . The diagram depicts Organization A's current
on-premise environment, where Service Consumers A . B and C attempt to access Service A at the
same time. Service Consumer A successfully accesses Service A, which then successfully retrieves the
requested data (1). Service Consumer B successfully accesses Service A, but due to the complex data
structure, the request for the data times out and fails (2). Finally, Service Consumer C attempts to
access Service A, but is rejected because Service A is unable to accept more concurrent requests.

Organization A is required to continue using its on-premise Service A implementation, with the
exception of Database A, which does not need to remain on-premise. Database A is dedicated to
Service A and is comprised of relational data. Which of the following statements provides a solution
that uses cloud-based IT resources to solve the performance limitations of Service A and Database A?

• A. A failover system can be implemented in a hybrid architecture comprised of Organization A's existing on-premise environment and a public cloud environment. The failover system would span both environments so that when Service A is unable to process request messages from Service Consumers A, B or C, the failover system can automatically route messages to a redundant implementation of Service A residing in the public cloud. Similarly, when Database A is unable to process a data access request from Service A . the failover system can automatically route this request to a redundant implementation of Database A, also residing in the public cloud.
• B. The state management database and resource replication mechanisms can be implemented to establish redundant implementations of Service A and Database A in both on-premise and cloud environments. Using resource replication, a cloud-based duplicate of Service A (Cloud Service A) will be established in a public cloud and will remain in synch with Service A via regular replication cycles. Using the resource replication mechanism together with the state management database mechanism allows for Database A to be dynamically replicated in an independent state management database that has redundant implementations in both on-premise and cloud environments. The state management database can be further optimized to support non-relational data to improve data access performance.
• C. A cloud bursting solution can be implemented, whereby a redundant copy of Service A is implemented within a public cloud. This cloud-based, redundant implementation of Service A is referred to as Cloud Service A . A copy of Database A is also implemented within the cloud and both the on-premise and cloud-based copies of Database A are redesigned to be nonrelational in order to improve data access performance. Service A continues to act as a first point of contact for Service Consumers A, B and C. An automated scaling listener is deployed so that when Service A's thresholds are met, requests are automatically routed to Cloud Service A .
• D. None of the above

C

Discussions
0 / 600

##### Question 6

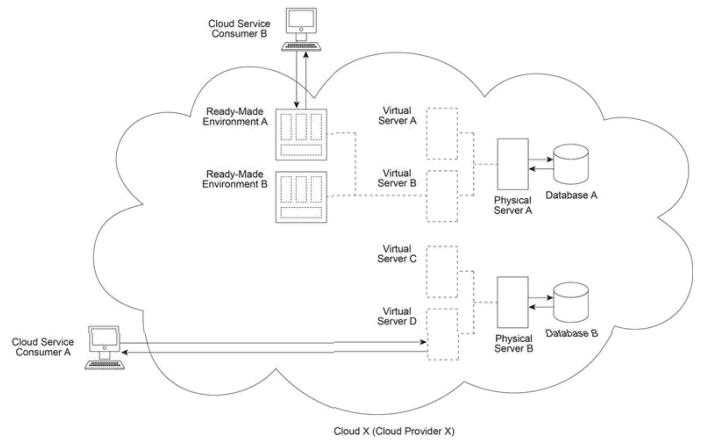

Cloud Provider X (which owns Cloud X) deploys two physical servers (Physical Servers A and B) and
two databases (Databases A and B). Virtual Servers A and B are hosted by Physical Server A and
Ready-Made Environments A and B are hosted by Virtual Server B . Virtual Servers C and D are
hosted by Physical Server B . Cloud Service Consumer A regularly accesses Virtual Server D in order
to test and deploy a new cloud service that was developed on-premise by the cloud consumer
organization operating Cloud Service Consumer A . Cloud Service Consumer B (operated by a
different cloud consumer organization) has been regularly accessing Ready-Made Environment A in
order to develop and deploy a different new cloud service.

Cloud X is a private cloud that, to-date, has been set up within the cloud provider company to
provision IT resources free of charge to internal cloud consumers, via PaaS and IaaS delivery models.
The cloud consumers that have been operating Cloud Service Consumers A and B represent different
IT departments within the company that have been working separately on the development of new
cloud services. Cloud Service Consumer A has been accessing Virtual Server D to make necessary
configurations and administration settings for the upcoming deployment of a new cloud service that
was previously developed outside of Cloud X. Cloud Service Consumer B has been accessing Ready-
Made Environment A to develop and now deploy a different new cloud service. Cloud Provider X
(which is represented by a separate IT department dedicated to governing and administering Cloud
X) determines that it will need to introduce three specific enhancements to Cloud X in order to
accommodate both upcoming cloud services. First, it needs to add a way to charge cloud consumers
for the usage of cloud services. Secondly, it needs to add a way for new cloud services to be
automatically scaled. Finally, it needs to add a way for a cloud consumer to be automatically notified
when a cloud service encounters runtime loads that exceed its allocated usage threshold. Which of
the following statements accurately describes a solution that fulfills all three identified
requirements?

• A. The pay-for-use monitor mechanism can be installed to address the requirement for cloud service usage charges to be tracked and recorded. The automated scaling listener mechanism can be implemented to address the requirement for cloud services to be automatically scaled. The multi- device broker mechanism can be implemented to address the requirement for notifications to be issued when cloud service loads exceed thresholds.
• B. The pay-for-use monitor mechanism can be installed to address the requirement for cloud service usage to be tracked and recorded. The automated scaling listener mechanism can be implemented to address both the requirement for cloud services to be automatically scaled and for notifications to be issued when cloud service loads exceed thresholds.
• C. The pay-for-use monitor mechanism can be implemented to address the requirement for cloud service usage charges to be tracked and recorded, for cloud services to be automatically scaled, and for notifications to be issued when cloud service loads exceed thresholds.
• D. The state management database mechanism together with the virtual server mechanism and the automated scaling listener mechanism can be implemented to address the requirement for cloud service usage charges to be tracked and recorded, for cloud services to be automatically scaled, and for notifications to be issued when cloud service loads exceed thresholds.

B

Discussions
0 / 600

##### Question 7

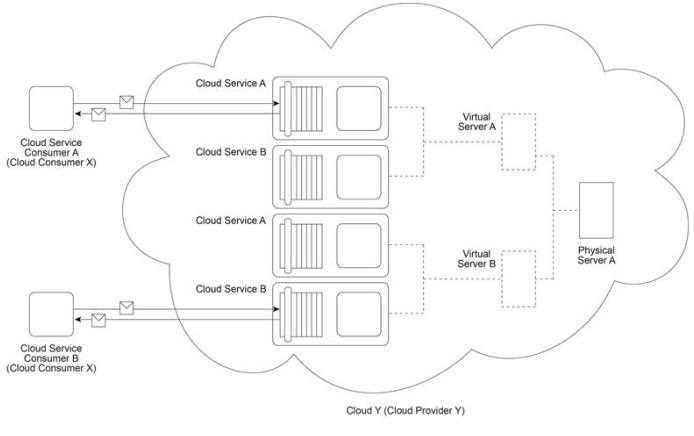

Cloud Provider Y owns Cloud Y, which provides a set of cloud services, virtual servers, and one
physical server. Cloud Services A and B are hosted on Virtual Server A, which is hosted by Physical
Server A . Physical Server A also hosts Virtual Server B, which hosts redundant implementations of
Cloud Services A and B for load balancing purposes. Cloud Service Consumer A is accessing Cloud
Service A located on Virtual Server A . Cloud Service Consumer B is accessing Cloud Service B located
on Virtual Server B . Cloud Service Consumers A and B are both owned by Cloud Consumer X. Cloud
Consumer X has recently complained that Cloud Service A is becoming increasingly unreliable. Cloud
Provider Y launches an investigation that reveals that Virtual Server A has been crashing sporadically
due to successful malicious intermediary attacks where malicious service agents have been inserting
harmful data into messages sent by Cloud Service Consumer A to Cloud Service A

Which of the following statements describes a solution that can mitigate the malicious intermediary
attacks that have been occurring on Virtual Server A - and - can further help prevent the same types
of attacks from occurring on Virtual Server B?

• A. Cloud Provider Y can implement the cloud-based security group mechanism that establishes a logical trust boundary that encompasses Virtual Servers A and B
• B. Cloud Provider Y can implement the encryption and digital signatures mechanisms to protect the contents of messages from being augmented by malicious service agents.
• C. Cloud Provider Y can implement the failover system mechanism by requiring that redundant copies of all service agents be deployed. This will reduce the chances of any one service agent performing malicious actions at runtime.
• D. Cloud Provider Y can implement the identity and access management mechanism for Virtual Servers A and B by physically deploying this mechanism on Physical Server A and then further implementing the resource replication mechanism to propagate the identity and access management system across Virtual Servers A and B.

B

Discussions
0 / 600

##### Question 8

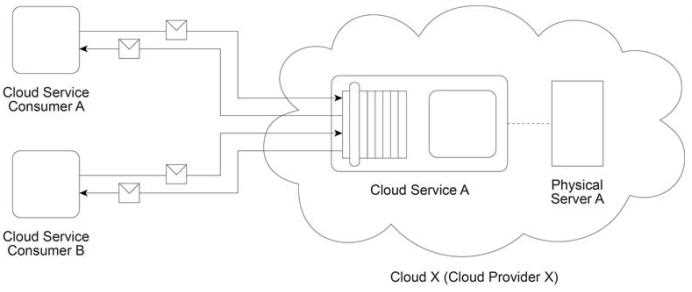

Cloud Service A is being made available on public Cloud X by Cloud Provider X via the SaaS delivery
model. Cloud Service A is hosted by Physical Server A that also hosts cloud services being used by
different cloud service consumers (and owned by different cloud service owners). Cloud Service
Consumers A and B access Cloud Service A on a regular basis and Physical Server A has been able to
accommodate the resulting usage load After reviewing the implementation environment for Cloud
Service A . Cloud Provider X determines it needs to enhance the ubiquitous access and multi-tenancy
characteristics within this part of Cloud X.

Which of the following statements accurately describes a solution that fulfills all of these
requirements?

• A. The multi-device broker mechanism can be implemented to address ubiquitous access requirements by broadening the range of cloud service consumers that can access Cloud Service A . The resilient computing mechanism can be implemented to establish the multitenancy capabilities of Cloud Service A so that it will be able to resiliency accommodate the additional cloud service consumer devices that will gain access to it.
• B. The resilient computing mechanism can be implemented to address ubiquitous access requirements by making Cloud Service A available to a broader range of cloud service consumer devices, including desktops running Web browsers and various mobile devices. The resource replication mechanism can be implemented to enable multi-tenancy within the Cloud Service A implementation.
• C. The resource replication mechanism can be introduced to address ubiquitous access requirements by broadening the range of cloud service consumers that can use Cloud Service A via standard service replication. The virtual server mechanism can be implemented to enable multi-tenancy via each service replication resulting from the application of the resource replication mechanism.
• D. The multi-device broker mechanism can be implemented to address ubiquitous access requirements by broadening the range of cloud service consumers that can access Cloud Service A . The virtual server mechanism can be implemented to establish the multitenancy capabilities of Cloud Service A .

D

Discussions
0 / 600

##### Question 9

The cloud service owner of Cloud Service A is evaluating Clouds X, Y and Z to determine which cloud
environment can offer the greatest level of reliability. All three clouds are geographically dispersed
across three separate time zones. As a result, each cloud experiences usage peaks at different times.
Based on the metrics provided, the greater the usage of a cloud, the lower its reliability. When the
cloud service owner complains to Cloud Provider A (the owner of all three clouds) that none of the
clouds provide an adequate level of reliability, Cloud Provider A suggests a solution that increases
resiliency.

Which of the following statements accurately describe how a cloud balancing solution can be
implemented to fulfill the resiliency requirements of Cloud Service A?

• A. Cloud Service A is redundantly deployed in advance within Clouds X. Y and Z and is further supplemented with failover system mechanisms and specialized types of automated scaling listener mechanisms.
• B. Using a PaaS environment, the cloud service owner can configure a primary Cloud Service A implementation on Cloud X so that when failure conditions occur, message requests from cloud service consumers are automatically routed to a redundant on-premise implementation of Cloud Service A . This requires the implementation of the failover system and resource replication mechanisms.
• C. A type of automated scaling listener that can also be considered a cloud monitor is implemented in Clouds X, Y and Z to establish a system whereby each cloud can assume control of cloud service consumer message exchanges. This results in resilient cloud balancing, as opposed to on-demand cloud balancing.
• D. Clouds X, Y and Z are equipped with failover system mechanisms and specialized types of automated scaling listener mechanisms in order to establish cross-cloud resiliency. Cloud Service A is configured so that Clouds X, Y and Z can dynamically generate redundant instances on-demand.

A, D

Discussions
0 / 600

##### Question 10

Organization A has been expanding and, as a result, is outgrowing the processing capacity of its on-
premise Service A implementation. It is determined that this is due to usage thresholds of Service A
and complex data processing limitations in Database A . The diagram depicts Organization A's current
on-premise environment, where Service Consumers A . B and C attempt to access Service A at the
same time. Service Consumer A successfully accesses Service A, which then successfully retrieves the
requested data (1). Service Consumer B successfully accesses Service A, but due to the complex data
structure, the request for the data times out and fails (2). Finally, Service Consumer C attempts to
access Service A, but is rejected because Service A is unable to accept more concurrent requests.

Organization A is required to continue using its on-premise Service A implementation, with the
exception of Database A, which does not need to remain on-premise. Database A is dedicated to
Service A and is comprised of relational data. Which of the following statements provides a solution
that uses cloud-based IT resources to solve the performance limitations of Service A and Database A?

• A. The virtual server and resource replication mechanisms can be implemented to replicate Service A and Database A across both on-premise and cloud environments. This enables on-demand usage in that requests sent by Service Consumers A, B and C will automatically be redirected to the replicated service and/or database. As a result, Service A' s usage thresholds will no longer result in rejected requests and Database A' s processing limitations will no longer result in failed data access attempts.
• B. A cloud balancing solution can be implemented within the public cloud, whereby a redundant Cloud Service A implementation is established. Cloud Service A becomes the first point of contact for Service Consumers A, B and C (thereby turning them into Cloud Service Consumers A. B and C). Upon reaching its usage threshold (which will be higher than the on-premise Service A), Cloud Service A automatically routes usage requests to Service A . The resource replication mechanism is implemented within the cloud to establish a replicated Database A that can further be used to load balance data access requests from Cloud Service A or Service A .
• C. Automated scaling listener mechanisms can be implemented in both the on-premise and cloud environments. Using built-in resiliency features, these service agents can be configured to coordinate the routing of messages between the on-premise Service A implementation and a redundant Cloud Service A implementation. This dynamic functionality can avoid service usage thresholds in both Service A and Cloud Service A .
• D. None of the above.
